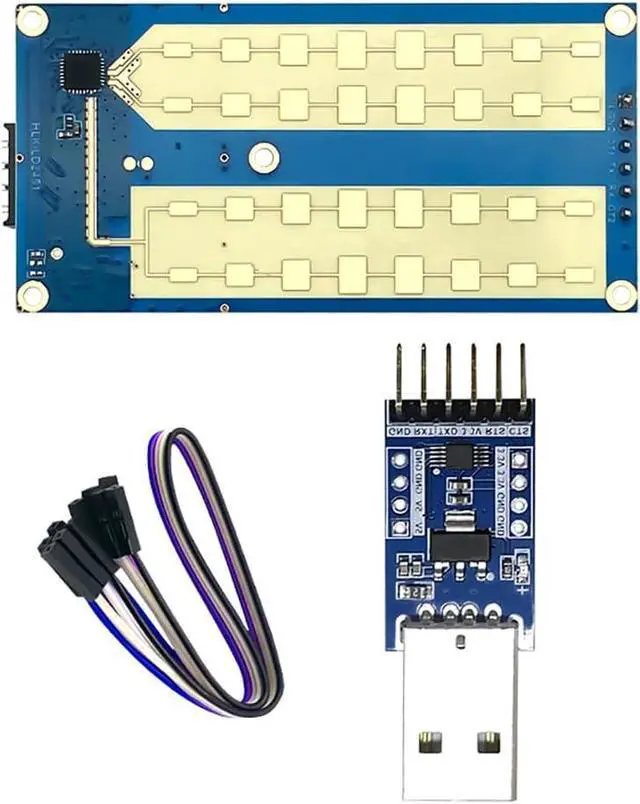

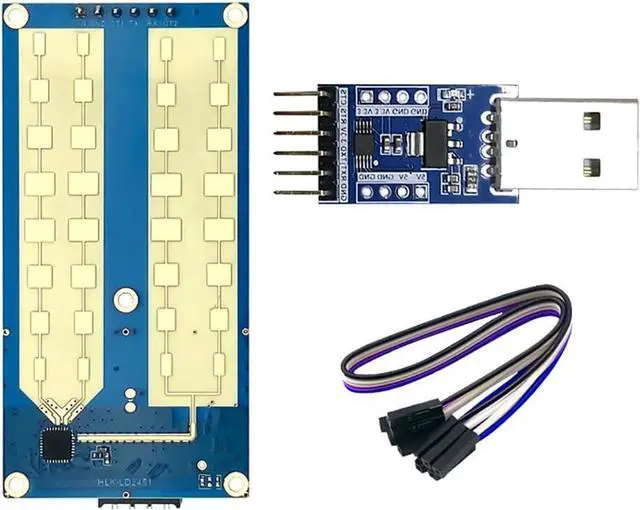

LD2451 24G Vehicle Status Monitoring Sensor Module Vehicle Ranging and Speed Measurement Millimeter Wave Ra·DAR Adapter (Module Test Kit)
- Brand JMT
- Voltage 5 Volts
- Number of Items 1
+
+
Overview
Specs
Reviews

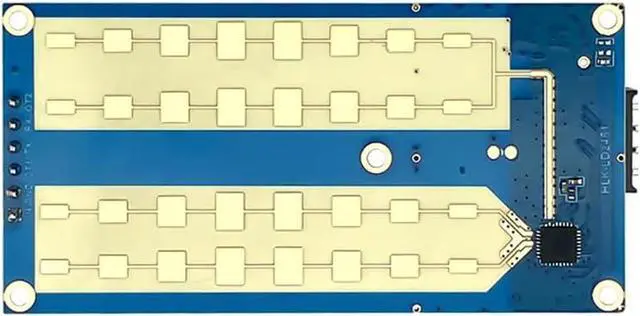

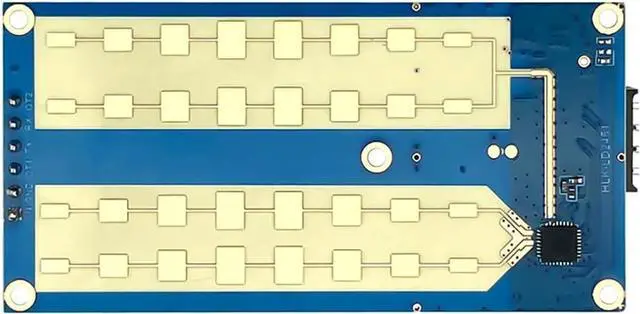

- LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area.
- Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection.
- Modulation mode: FMCW. Detection angle: ±20. default 2.54mm x 6Pin.
- Power Requirement: 5V(Typ.) / power supply capacity >300mA.
- Detection distance: Maximum sensing distance 100m.
- Data format: serial port ASCII output, GPIO level output.
