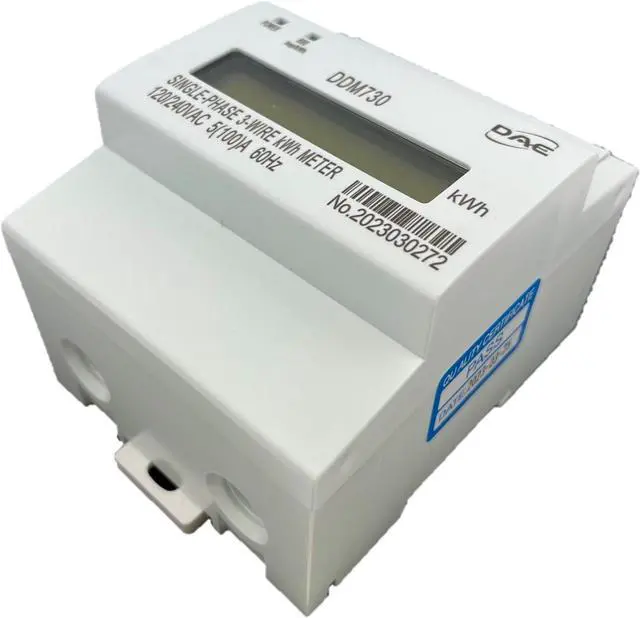

DAE DDM730 120/240V kWh Meter, 100A, 1P3W (2 hot Wires, 1 Neutral), Internal CT, 60 Hz, Pass Through

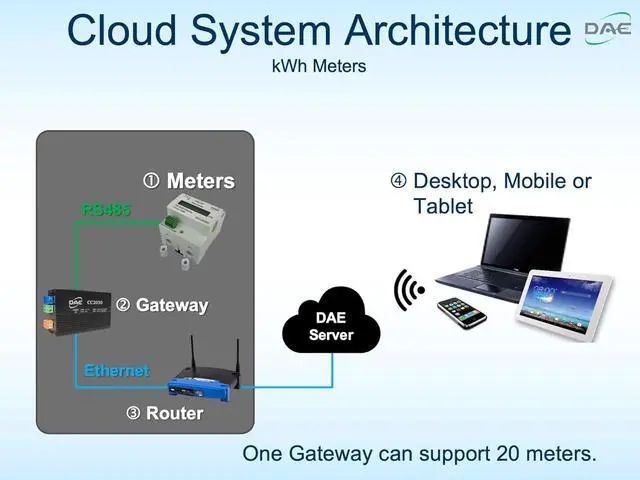

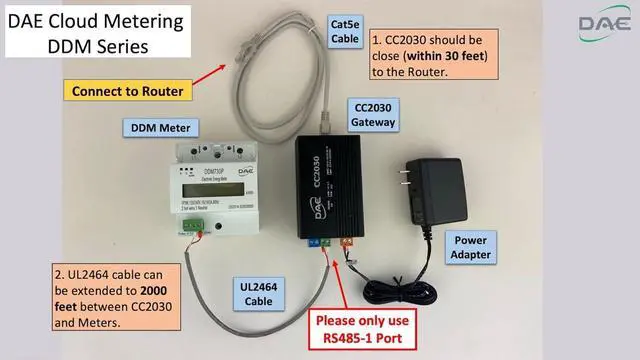

DDM730P is ready for Cloud Metering (2nd picture) with DAE CC2030 Gateway. CC2030 will collect energy data from DAE electrical meters and send them to Cloud Server through Ethernet. With PC, cell phone or tablet, landlords or property managers can get access to real time data, monthly kWh and billing reports to their tenants. TOU (Time of Use) billing reports are also available. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.

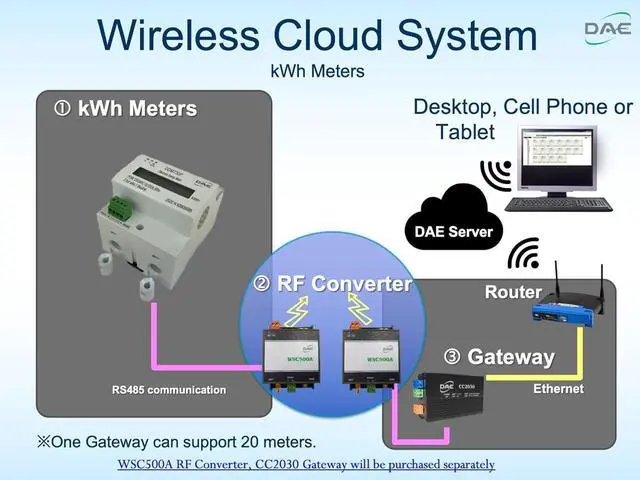

For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly. (3rd picture)

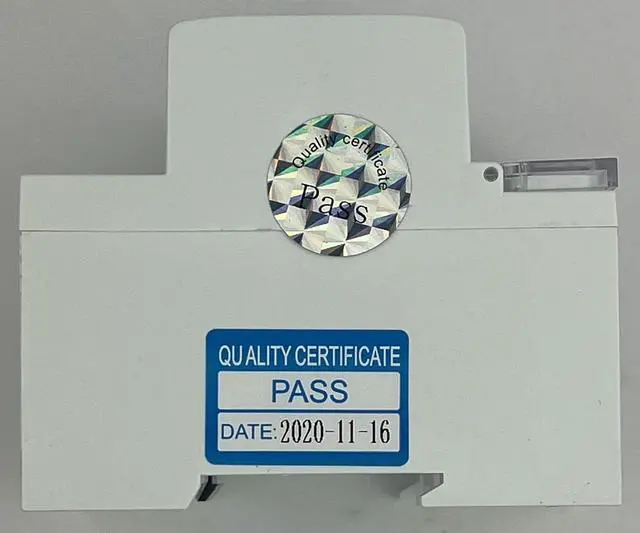

Conforms to International Standard IEC62053-21 and IEC62052-11. For UL/cUL listed and California CTEP approved electric meters, please refer to DAE Polaris 1500 series like DAE P153-200-S KIT. Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
Indoor use only, DAE B1725 watertight enclosure is available for outdoor use.

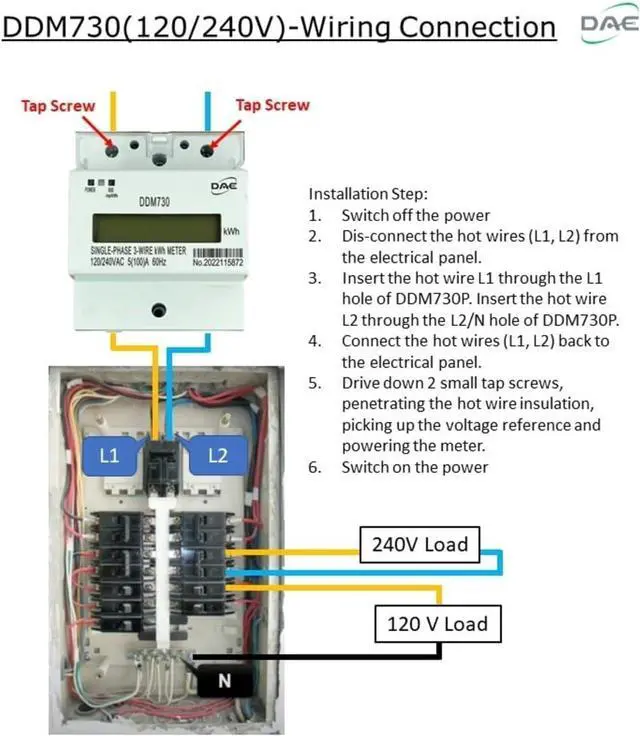

Can monitor the whole electrical panel (2 hot wires, 1 neutral) for both 120V circuits and 240V circuits. Only 2 hot wires pass through the meter. Neutral will not be connected to the meter. (4th picture). DDM730 can also monitor 240V circuit from dual-pole breaker.
