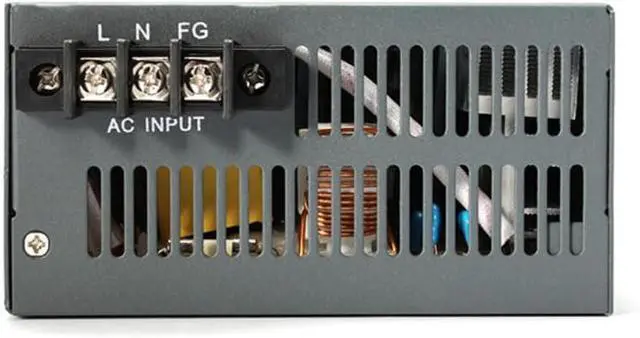

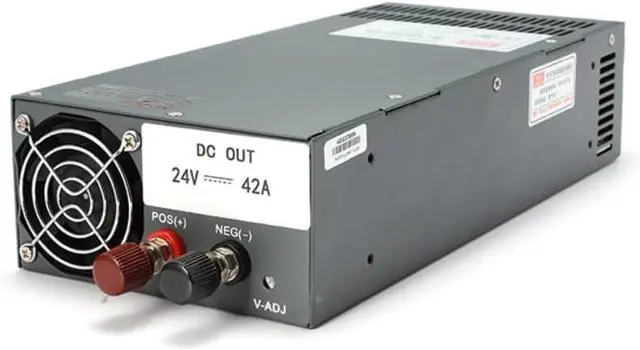

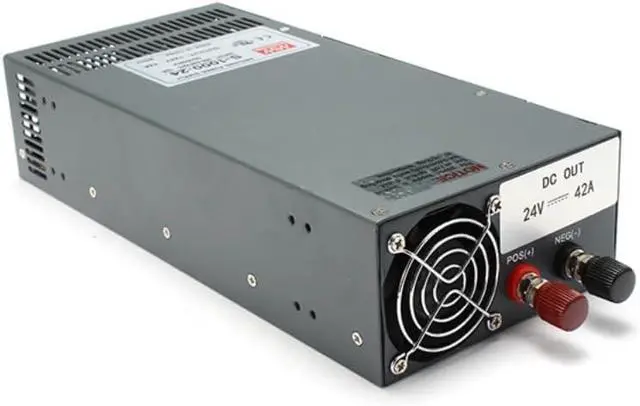

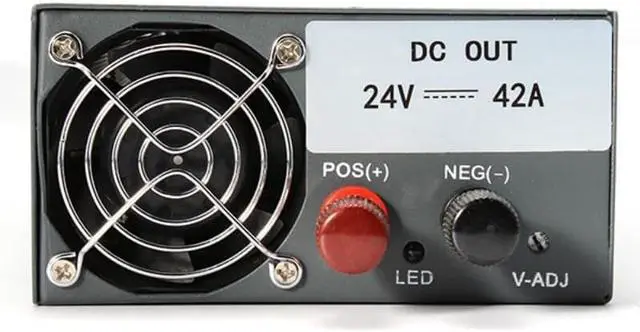

Chougnar MEAN WELL S-1000-24 1000W 24V 40A Single Output AC to DC Switching Power Supply
- Package Includes: 1 x MEAN WELL S-1000-24 Switching Power Supply
- -AC input voltage range changed by the switch.
- -100% full load burn-in test.
- -Over-voltage, over corrent, short circuit protection.
- -Heat from the cold.
+
+
Overview
Specs
Reviews
Features:
-AC input voltage range changed by the switch.
-100% full load burn-in test.
-Over-voltage, over corrent, short circuit protection.
-Heat from the cold.
-Built-in romote on/off and the voltage compensation signel interface.
-Parallel function with (N+1).
-Low-cost, high reliability.
Specifications:
Model: S-1000-24
DC output voltage: 24V
Output voltage tolerance (Note 2): 1%
Rated output current: 40A
Output current range: 0-40A
mVp-p: 240mVp-p
DC output power: 1000W
Efficiency: 85.5%
DC voltage adjustable range: 20-26.4V
Input voltage range: 190~240VAC, 47~63Hz
Input current: 7A/230V
Impact current: 50A/230V
Leakage current: less than 3.5mA/240V
Overload protection: 105%~150%, shut off current, automatically restore
Voltage between input and output: 1.5KvAC
Input and enclosure: 1.5KvAC
Output and enclosure: 0.5KvAC
Weight: 3KG
Package includes:
1 x MEAN WELL S-1000-24 Switching Power Supply
-AC input voltage range changed by the switch.
-100% full load burn-in test.
-Over-voltage, over corrent, short circuit protection.
-Heat from the cold.
-Built-in romote on/off and the voltage compensation signel interface.
-Parallel function with (N+1).
-Low-cost, high reliability.
Specifications:
Model: S-1000-24
DC output voltage: 24V
Output voltage tolerance (Note 2): 1%
Rated output current: 40A
Output current range: 0-40A
mVp-p: 240mVp-p
DC output power: 1000W
Efficiency: 85.5%
DC voltage adjustable range: 20-26.4V
Input voltage range: 190~240VAC, 47~63Hz
Input current: 7A/230V
Impact current: 50A/230V
Leakage current: less than 3.5mA/240V
Overload protection: 105%~150%, shut off current, automatically restore
Voltage between input and output: 1.5KvAC
Input and enclosure: 1.5KvAC
Output and enclosure: 0.5KvAC
Weight: 3KG
Package includes:
1 x MEAN WELL S-1000-24 Switching Power Supply
