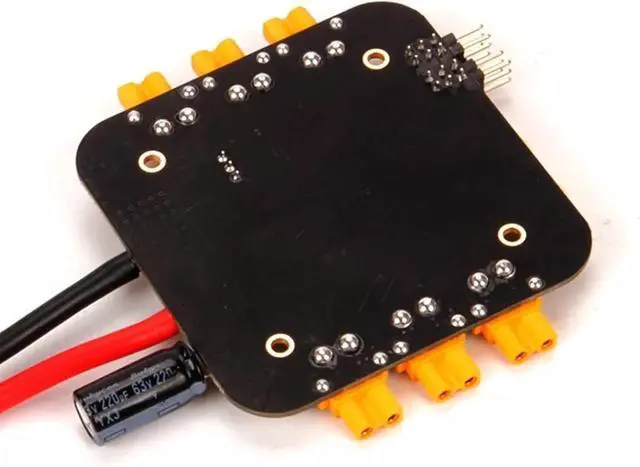

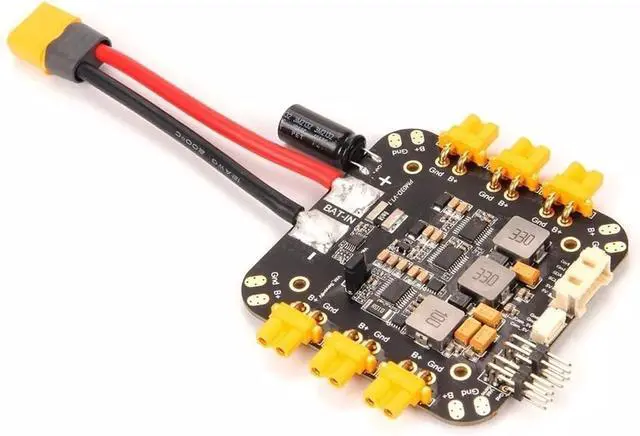

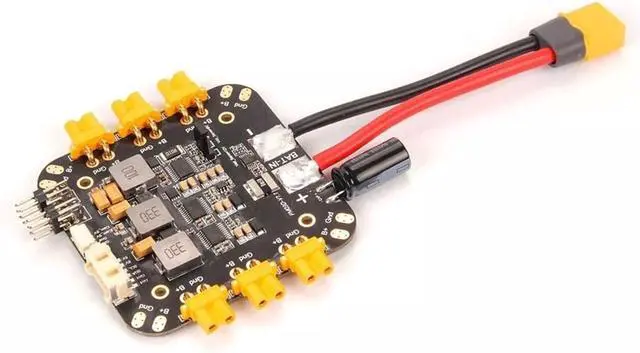

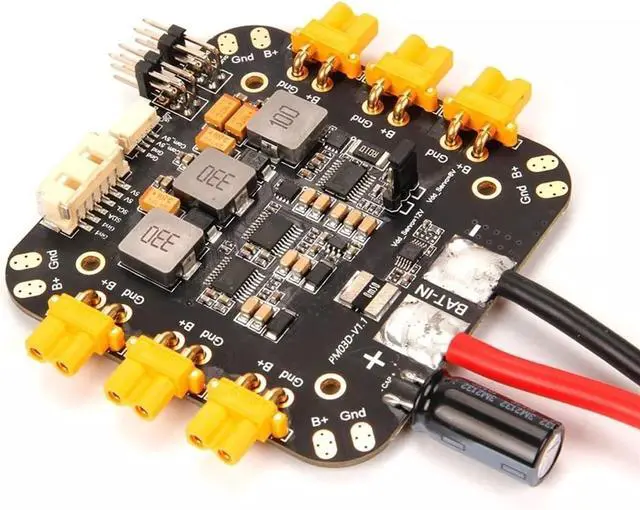

X500 V2 Multirotor Power Module, for Holybro PM03D Power Module XT30 XT60 6S for Pixhawk4 Pixhawk 5X Pixhawk 6X for Durandal Pix32 Flight Controller X500 V2 Multirotors
- PM03D provides regulated power supply as well as current consumption and battery voltage all through a 6pin 2.00mm for CLIK-Mate cable. Compatible to flight controller that uses I2C power monitor such as for Pixhawk 5X and up.
- It is design for multi-rotor like the X500 V2. It has both XT-30 & XT60 connectors preinstalled for motor ESCs and Battery as well as two 5V BEC and a selectable 8V12V output different kinds of peripheral devices.
- Note: This for PM is not compatible with flight controller that uses analog PM such as for Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers.
- Plug & play no additional setup required for QGroundcontrol Mission Planner
- We are responsible for every buyer, if there is any problem with the product, you can contact us at any time, we will definitely give you a satisfactory solution
+
+
Overview
Specs
Reviews
Features
Plug & play no additional setup required for QGroundcontrol Mission Planner
XT30 connectors and solder pads for easy motor ESC connection
Onboard voltage regulators: two 5.2V & one selectable 8V12V
5VA ports for powering companion computer or peripheral device
Selectable 8V or 12V triple row pin header for powering peripheral device
Technical Specification
Maximum input voltage: 6S battery
Rated current: 60A
Max current: 120A (<;60 Sec)
Max current sensing: 164A

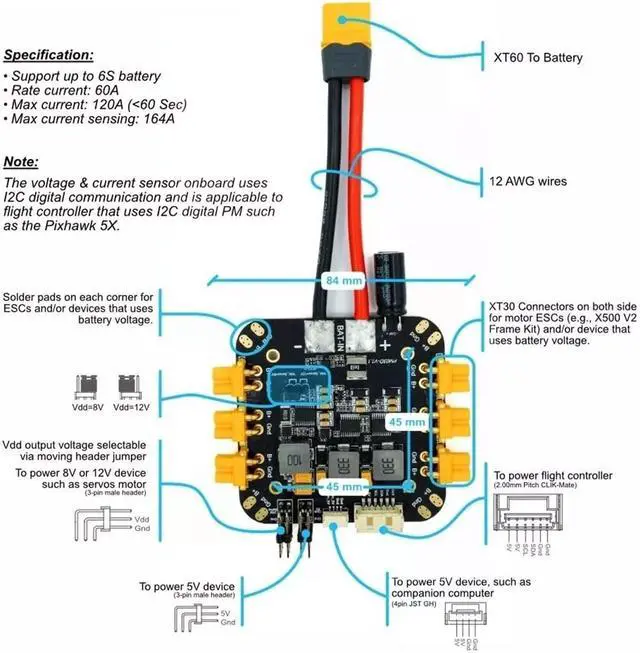

Connections
XT-60 for battery
XT-30 for motor & peripheral device battery voltage
Solder pads in each corner battery voltage
for CLIKMate 20mm for flight controller (5.2V/3A standalone BEC)
for JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
Dimension: 84*78*12mm (excluding wires)
Mounting: 45*45mm
Weight: 59g
The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<;1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.

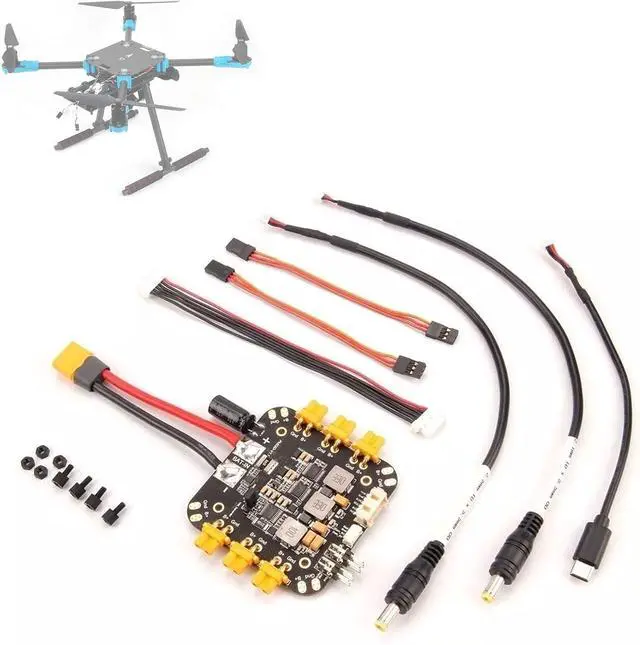

Package Includes:
1x PM06 board
1x 80mm XT60 connector wire (pre-soldered)
1x Electrolytic capacitor: 220uF 63V (pre-soldered)
1x 2.0mm pitch for CLIK-Mate 6pin cable (To power flight controller)
4pin for JST GH to USB Type C
4pin for JST GH to barrel plug (2.1*5.5mm)
4pin for JST GH to barrel plug (2.5*5.5mm)
4pin for Pin Dupont Cable (2pc)
Nylon standoffs & nuts
You can contact us at any time to learn about the latest prices and the most complete products.We will be online 24 hours. If you feel that the product you received does not achieve the desired effect, please contact us in time, we will do our best to help you solve various problems
Plug & play no additional setup required for QGroundcontrol Mission Planner
XT30 connectors and solder pads for easy motor ESC connection
Onboard voltage regulators: two 5.2V & one selectable 8V12V
5VA ports for powering companion computer or peripheral device
Selectable 8V or 12V triple row pin header for powering peripheral device
Technical Specification
Maximum input voltage: 6S battery
Rated current: 60A
Max current: 120A (<;60 Sec)
Max current sensing: 164A
Connections
XT-60 for battery
XT-30 for motor & peripheral device battery voltage
Solder pads in each corner battery voltage
for CLIKMate 20mm for flight controller (5.2V/3A standalone BEC)
for JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
Dimension: 84*78*12mm (excluding wires)
Mounting: 45*45mm
Weight: 59g
The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (<;1 minute). If a higher current is being used, the plug type and wire size should be changed accordingly.
Package Includes:
1x PM06 board
1x 80mm XT60 connector wire (pre-soldered)
1x Electrolytic capacitor: 220uF 63V (pre-soldered)
1x 2.0mm pitch for CLIK-Mate 6pin cable (To power flight controller)
4pin for JST GH to USB Type C
4pin for JST GH to barrel plug (2.1*5.5mm)
4pin for JST GH to barrel plug (2.5*5.5mm)
4pin for Pin Dupont Cable (2pc)
Nylon standoffs & nuts
You can contact us at any time to learn about the latest prices and the most complete products.We will be online 24 hours. If you feel that the product you received does not achieve the desired effect, please contact us in time, we will do our best to help you solve various problems
