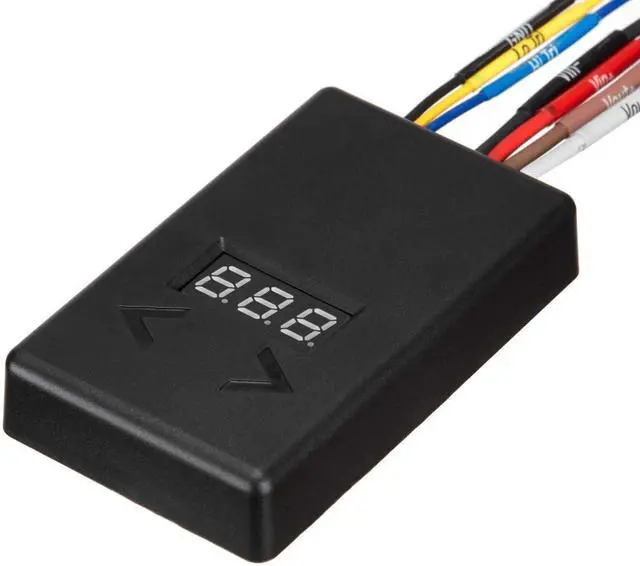

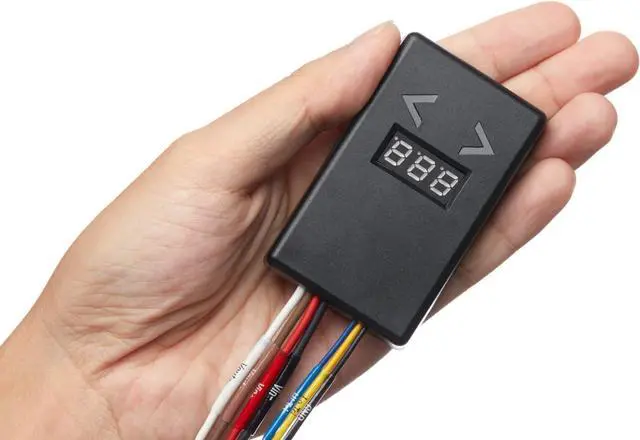

Oznium Fade-in Fade-Out LED Dimmer, 8 Amp Current Rating
- PROFESSIONAL SMOOTH FADE IN / FADE OUT EFFECT: No more abrupt turn on / turn off of your lights. Instead, they slowly increase in brightness when you turn them on, and slowly decrease in brightness when you turn them off.
- CHOOSE FROM 13 SPEEDS: From slow to fast, you can choose from 13 different speeds. Simply press the "Left-arrow" and "Right-arrow" touch button to increase or decrease the fading speeds. Clearly display the selected fading speed with the three digit seven-segment indicator
- POWER UP TO 8 AMPS: At 12 volts, you can power up to 8 amps of LEDs. An internal diode is integrated for reverse polarity protection. Input voltage: 12-24V. Output voltage: 12-24V.
- ENDLESS POSSIBILITIES: 1000's of creative uses, whether you want to light up your car, truck, boat, house, our high quality fade-in fade-out LED dimmer module is just what you need. The project ideas are endless, and we love seeing new ways our customers use this LED controller. Send us your application photos!
- LIFET
+
+
Overview
Specs
Reviews
Input voltage: 12-24VDC
Output voltage: Same as input voltage
Stand by current draw when unit is powered up, but connected LEDs are off: 25 mA
Maximum current: 8A@12VDC, 4A@24VDC
Protection: Reverse polarity protection
Dimmer size: 78.7mm x 47.5mm x 14.4mm
Weight: 68g
Length of the wire on both sides: 170mm

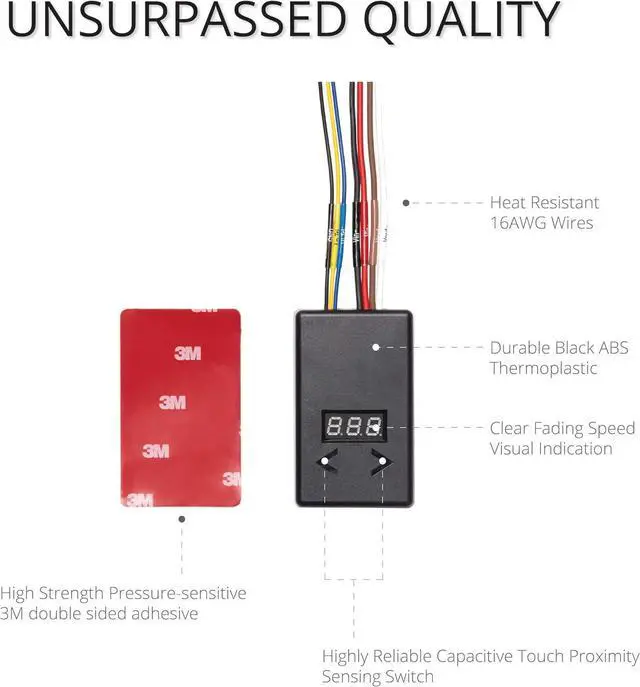

Wire gauge: 16AWG and 20AWG
PWM frequency: 7.5kHz

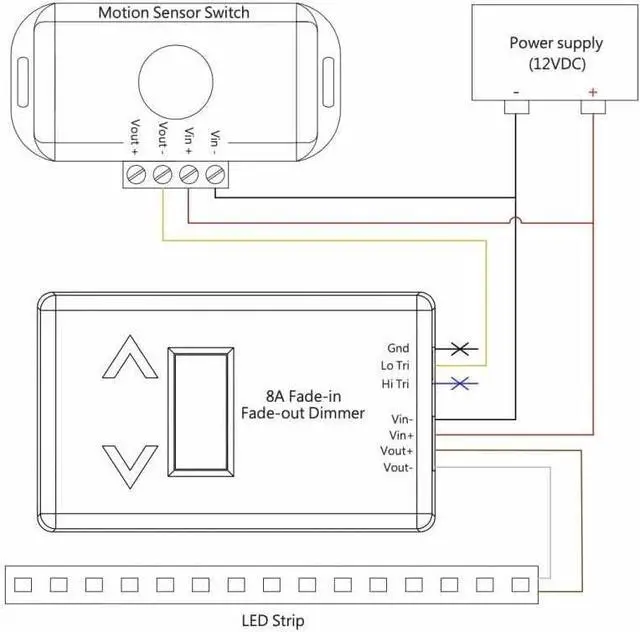

Trigger mode: Support both positive and negative trigger
IP Rating: IP66
Note: The Fade-in Fade-out LED Dimmer is designed to have the 12v+ and 12v- input wires constantly connected to a power source
* The 8 Amp dimmer needs about 10 seconds to "warm up" after connected to a power source.
* The speed can only be changed when the dimmer switch is at "off" state. It means that the light connected to the dimmer has to be off (i.e. after faded out) in order to change the speed.
Package Included:
- 1 x 8A Fade-in Fade-out Dimmer
- 1 x 3M adhesive tape
- Install Guide
Output voltage: Same as input voltage
Stand by current draw when unit is powered up, but connected LEDs are off: 25 mA
Maximum current: 8A@12VDC, 4A@24VDC
Protection: Reverse polarity protection
Dimmer size: 78.7mm x 47.5mm x 14.4mm
Weight: 68g
Length of the wire on both sides: 170mm
Wire gauge: 16AWG and 20AWG
PWM frequency: 7.5kHz
Trigger mode: Support both positive and negative trigger
IP Rating: IP66
Note: The Fade-in Fade-out LED Dimmer is designed to have the 12v+ and 12v- input wires constantly connected to a power source
* The 8 Amp dimmer needs about 10 seconds to "warm up" after connected to a power source.
* The speed can only be changed when the dimmer switch is at "off" state. It means that the light connected to the dimmer has to be off (i.e. after faded out) in order to change the speed.
Package Included:
- 1 x 8A Fade-in Fade-out Dimmer
- 1 x 3M adhesive tape
- Install Guide
