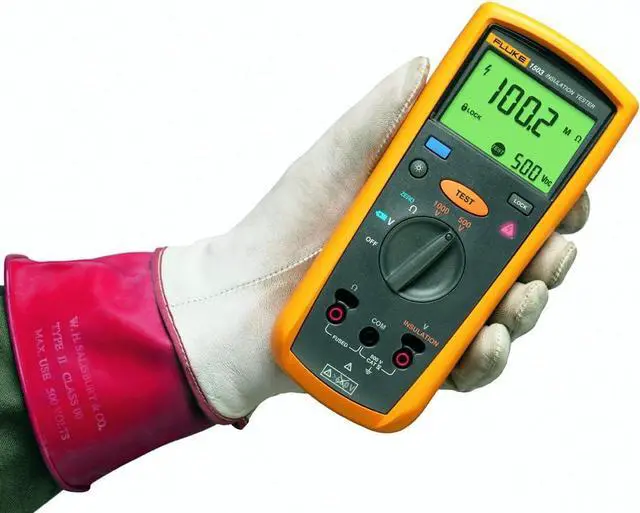

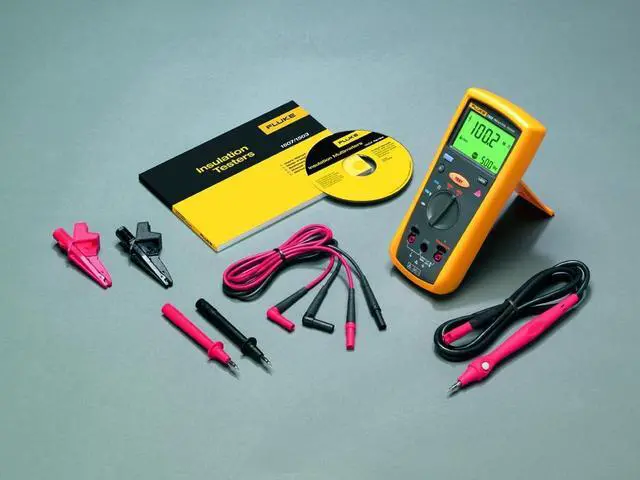

Fluke 1503 Insulation Resistance Tester, LCD Display, 2000 Megaohm Resistance, 500V/1000V Voltage

The fluke high-voltage digital megohmmeter is an insulation tester with preset and adjustable test voltages for measuring insulation resistance to 1t and no.937; (2T and no.937; For 10kv models) to indicate the condition of windings or cables in motors, switchgears, electrical installations, and other insulated equipment, and it also measures leakage current to 2 milliamperes (ma), capacitance to 20 and no.956;f, And ac and dc voltage to 600v, signaling when a voltage greater than 30v is detected. In addition to the preset test voltages of 250v, 500v, 1,000v, 2,500v, 5,000v, plus 10,000v for the 10kv models, test voltages can be adjusted in 50v increments to 1,000v and 100v increments above 1,000v. Its PI/DAR (polarization index/dielectric absorption rate) function automatically calculates pi and DAR, which are measurements over time that give a truer indication of insulation condition than single-point measurements. The meter can perform timed tests up to 99 minutes, adjustable in 1-minute increments, and has storage for up to 99 test results. Stored results can be uploaded to a pc with the included FlukeView forms basic software. The software is compatible with Microsoft windows 2000, XP, and vista. For improved accuracy during high-resistance testing, the guard terminal eliminates interference from leakage current. The meter has an LCD that shows the reading numerically and in a bar graph. Megohmmeters are commonly used for electrical maintenance and testing in industries such as HVAC, transportation, manufacturing, mining, and utilities, among others. The meter is rated for category (cat) iv installations to 600v, which covers equipment at the origin of the installation, such as electricity meters and primary over-current protection equipment, and cat iii installations to 1,000v, which covers equipment in fixed installations, such as switches in the fixed installation and some industrial equipment that is permanently connected to the fixed installation.
