13.3 Inch TFT LED Industrial Panel PC Resistive Touch Screen Computer All In One PC Front Panel IP65 Intel Celeron J1800 Windows or Linux 1xVGA 1xLAN 2xCOM 4xUSB 4GB Ram 64GB SSD - OEM

Model Number: Z1

Panel Specification:

1. Industrial 13.3"" TFT LED Panel

2. Imported 4 Wire Resistive Touch Screen

3. Front Panel IP65

Chassis: Aluminum

CPU: Intel Celeron Processor J1800

Memory: SO DIMM 1* DDR3L 1333, Max. 8G RAM

Storage: 1* mSATA SSD+ 1* 2.5 Inch HDD

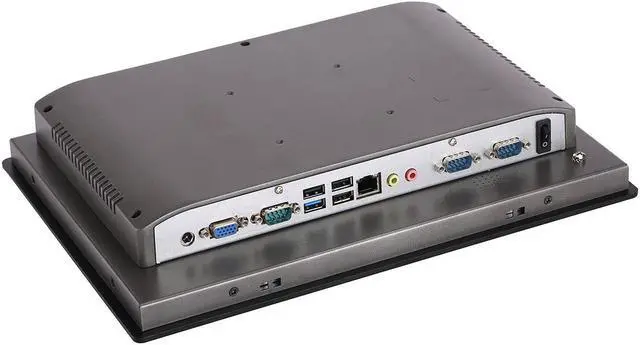

I/O: 3*RS232+ VGA+ LAN+ 3*USB2.0+ USB3.0+ DC+ Audio in&out

Cooling System: Fanless

BIOS: Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog and Other Functions

Network: Realtek 8111E

Audio: ALC662

Physical Dimension: 334.2* 229.85* 52.5mm

Gross Weight: 3.5KGS

Opening Hole Size: 326* 232mm (L*W)

Installation Method:

Standard VESA screw hole (75*75 or 100*100mm) for flexible installation

Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods

Display Parameters:

Resolution: 1280*800

Perspective: 70(left), 70(right), 45(up), 55(down)

Lumen (cd/m2): 330

Contrast: 500

Backlight Life: 10,000 hours (Min.)

Touch screen:

Transmittance: 80±5% at 550 nm wavelength

Controller: USB

Durability (number of touches): =5 million times

Operating Temperature: 0 ~ 50°C with SSD,0 ~ 40°C with HDD

Storage Temperature: -20 ? ~ 60 ?

Operating Humidity: 10% ~ 95% @ 40 ? without condensation

Power Supply: DC100-240V AC/50-60Hz, 12V4A

Packing List: Z1 Panel PC+ Power supply+ Power Cord+ Touch Pen+ Embedded Buckle Kit+ Warranty Card

System Support: Windows 7/10,Linux Ubuntu etc

System Default Option: Windows 10 pro in English

ATTENTION: For other options, Linux or other OS, other system language, do leave us message on the order, thank you.
