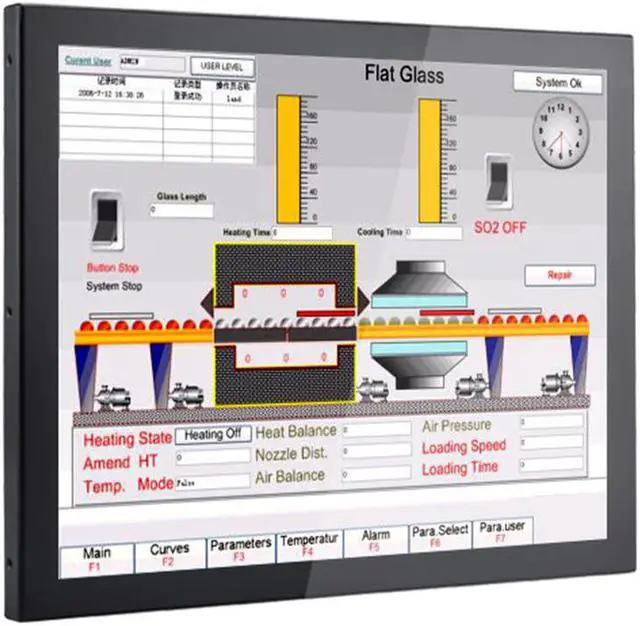

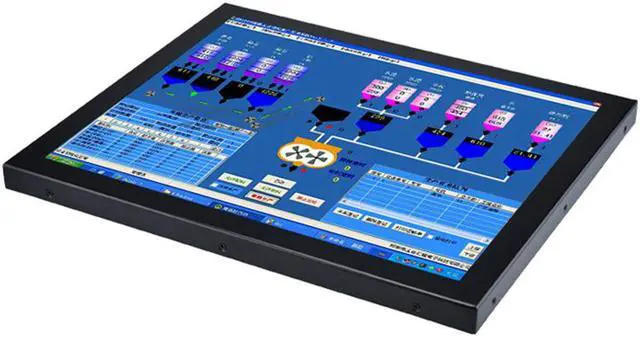

19 Inch Industrial Fanless Touch Panel PC J1900 8G RAM 240G SSD Z16

Model Number: Partaker Elite Z16
Screen Size: 19 Inch
Opening Hole Size: 334*232mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive
Touch Screen CPU: Bay Trail Celeron J1900 Quad Core 2.0G hz to 2.4G hz
OS: Windows
Or Linux RAM/SSD/HDD: Maximum 8G RAM, 1* MSATA + 1* 2.5 Inch

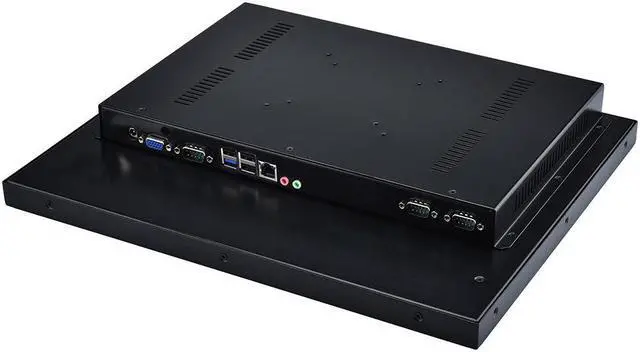

HDD I/O: 3*RS232+VGA+LAN+3*USB 2.0 +1 USB 3.0 +DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 432.5 * 356.5 * 57.7 (mm)
Gross Weight: 10.5
KGS Features: 19 Inch LED Screen, Large Screen Stable performance, support 7 * 24-hour uninterrupted operation Durable, dust-proof, high and low temperature resistance, impact resistance, anti-interference Optional WiFi module, support for 802.11 b / g / n Standard VESA screw hole, can choose the installation method flexibly Support Win7, Win8, Win10, Linux etc….
Panel Structure: Panel Size 19 Inch LED Screen Resolution 1280*1024 Display Brightness 250cd/m (2)
Contrast 1000: 1 Response Time 5ms Touch Type Using high-quality resistance touch screen click life> 1 million times
Usage Environment Operating Temperature: -10? ~60?
Surface Air Flow Operating Humidity: 10% ~ 95% @ 40? without condensation
Storage Temperature: -20? ~ 70?
Installation Method:
1. Embedded (Recommended)
2. Wall-mounted
3. Desktop
4. Cantilevered
5.
Other Installation Methods Motherboard:
BIOS: AMI 32Mbit, Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And
Other Functions Motherboard: Fanless
Design I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Adaptive Network Card Chip Audio: Realtek®ALC662 HD Audio Decoding Core Quality Inspection Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality. Company Profile Focus on the industrial sector for 8 years, your most reliable suppliers INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.
Package Information: Package Size 47.5CM (L) * 43.5CM (W) *15CM (H) Physical Weight 5.9KG / 7.05KG (Net/Gross) Power Supply Input: 180-240V~ 1.0A 50-60Hz
Output: 12VDC 4A MAX Power Cord Power Cord*1 Touch Pen Resistance touch pen*1 (10 capacitive touch screen without touch pen) Buckle Embedded Installation Buckle* 1
Set Special Tip: Barebone Configuration actually is NO RAM Included, due to system restrict, However we choose 1G DDR3 to be displayed. Please special attention, NO RAM NO SSD NO HDD for Barebone!!
