TMC2209 MINI E3 V3.0 32Bit Control Board Integrated with Cable For BIGTREETECH SKR

Be the first to review this product...

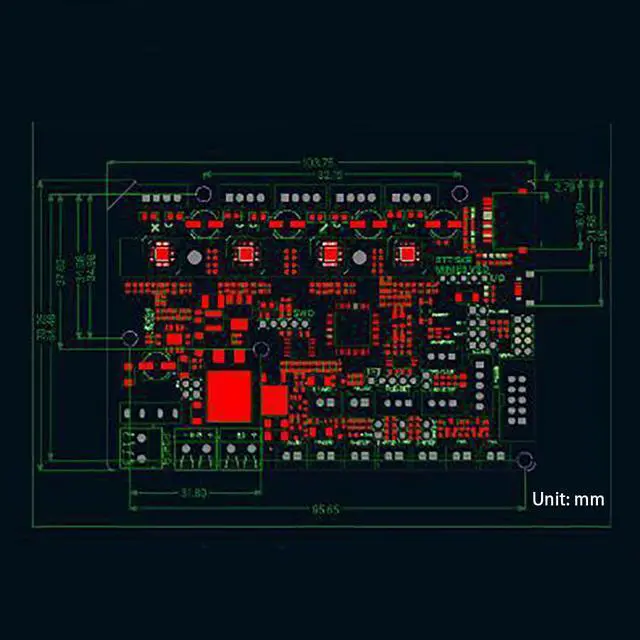

  • Appearance dimension: 103.75 * 70.25mm
  • Plate layer: 4
  • MCU ; ARM Cortex - MO +STM32GOB1RET6
  • Power input: DC12 / 24V
  • Logic voltage: 3.3V
  • Motor driver: TMC2209 UART mode

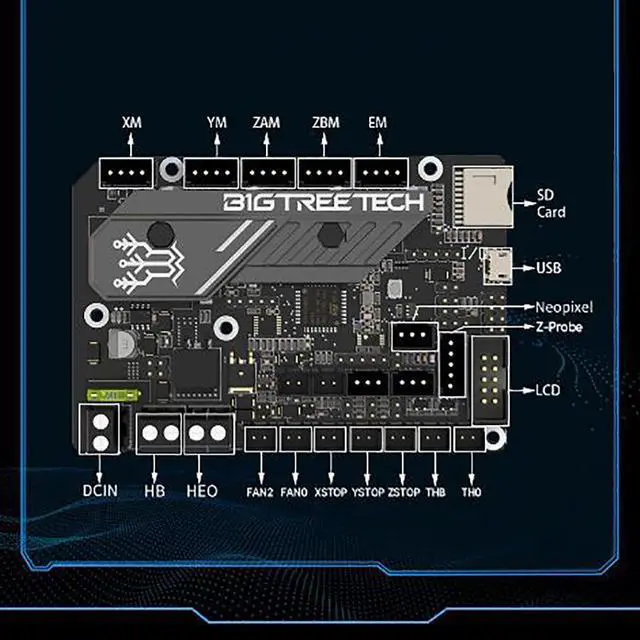

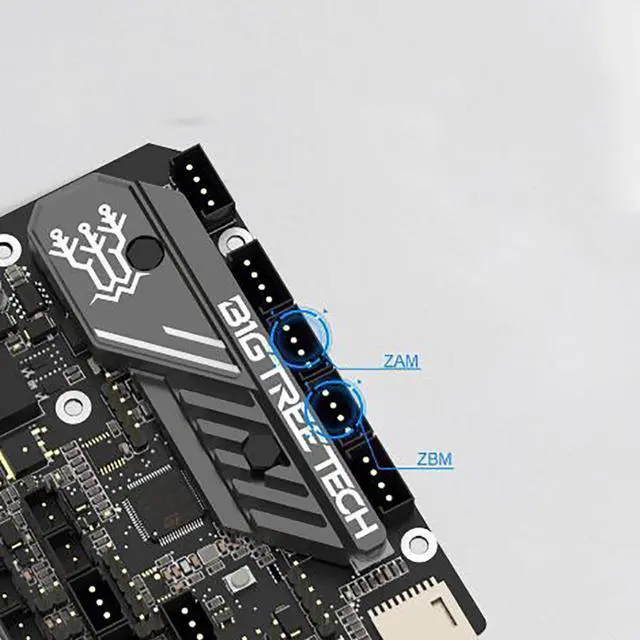

  • Motor drive interface: XM, YM, ZAM, ZBM, EM
  • Temperature sensor interface: THO, THB, 2-way 100k NTC (thermal resistance)
  • Suitable display screen: For 24 inch TFT, For 3.5 inch TFT, For ender3 LCD12864 screen, etc
  • PC communication interface: USB micro B type, easy to broadcast and unplug, with communication baud rate of 115200
  • Supported file format: G - Code
Overview
Specs
Reviews
Description: Appearance
dimension: 103.75 * 70.25 mm
Plate layer: 4 MCU; ARM Cortex - MO +STM32GOB1RET6
Power input: DC12 / 24V
Logic voltage: 3.3V
Motor driver: TMC2209 UART mode
Motor drive interface: XM, YM, ZAM, ZBM, EM
Temperature sensor interface: THO, THB, 2-way 100k NTC (thermal resistance)
Suitable display screen: For 24 inch TFT, For 3.5 inch TFT, For ender3 LCD12864 screen, etc
PC communication interface: USB micro B type, easy to broadcast and unplug, with communication baud rate of 115200
Supported file format: G -

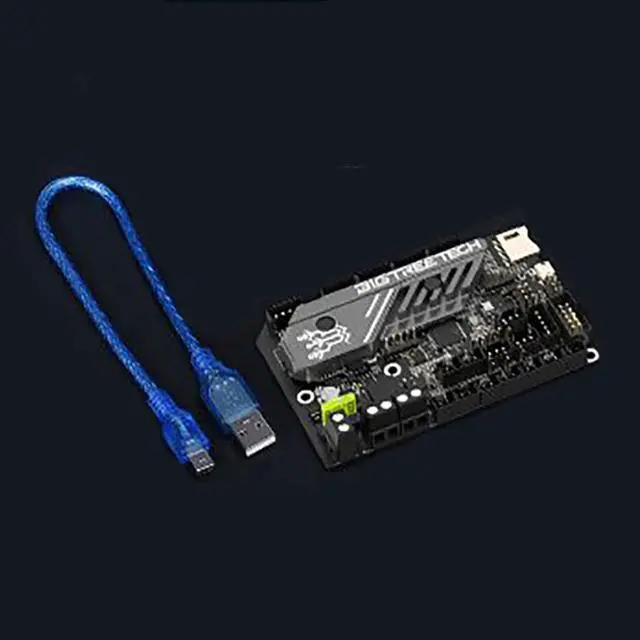

Code Products include: 1*Motherboard 1*Cable
