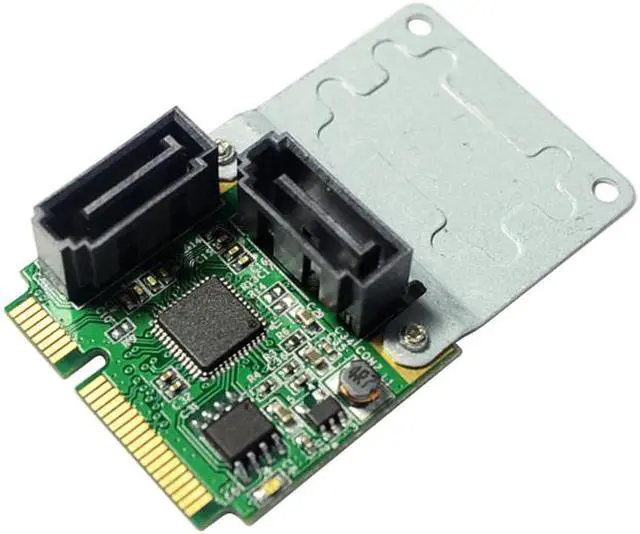

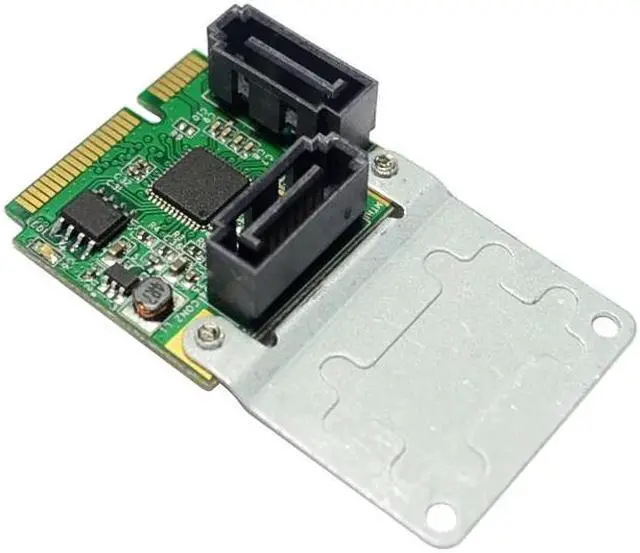

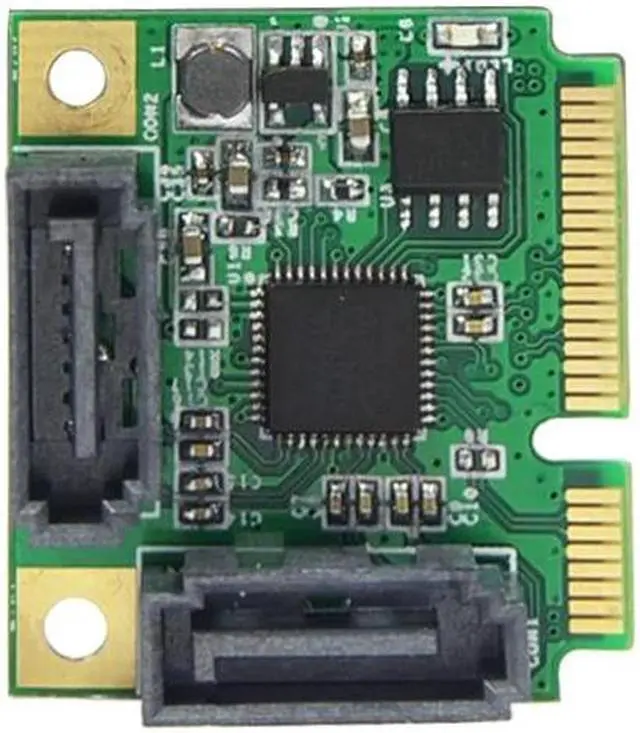

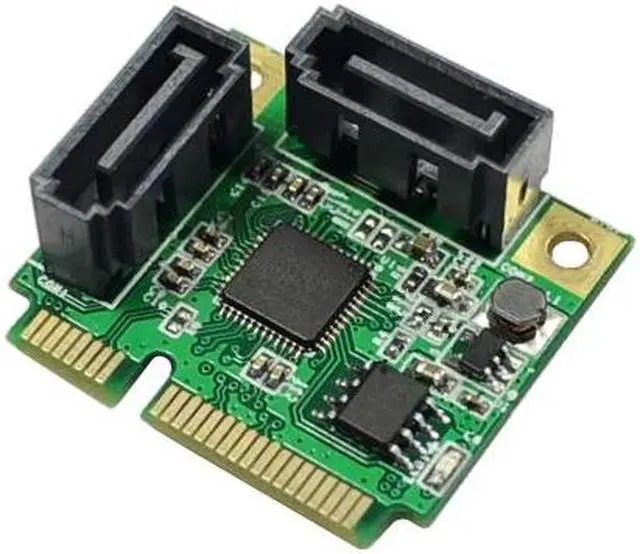

ASM1061 Chipset Mini PCI Express to 2-port SATA3.0 Expansion Card Support SATA HDD SSD

ASM1061 Chipset Mini PCI Express to 2-port SATA 3.0 Expansion Card Support SATA HDD SSD
About Description:

Specifications

A native PCI-Express single chip design
Supports two SATA 3.0 6Gbps ports
General
Compliant with PCI Express Base Spec. Revision 2.0 backward compatible to Revision 1.0 a
Single-Lane (x1) PCI-Express with throughput up to 5.0 / 2.5G bps
Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
Serial ATA (SATA) Interface
Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
Supports SATA 3.0 transfer rate up to 6Gbps
Backward compatible with SATA-II (3Gbps) and SATA-I ( 1.5G bps) specification
Supports Gen1m and Gen2m SATA PHY
Supports Native Command Queue (NCQ) and Port Multiplier
Supports Hot Plugging on SATA port.
System requirements:
Computer system with one Mini PCI-Express slot available
Windows 10/8/7 (32 / 64 bit) / Vista / Server 2003 / XP / 2000 Linux

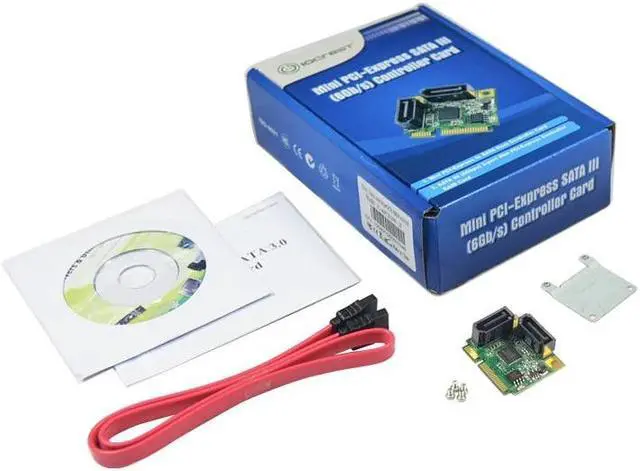

You'll receive:

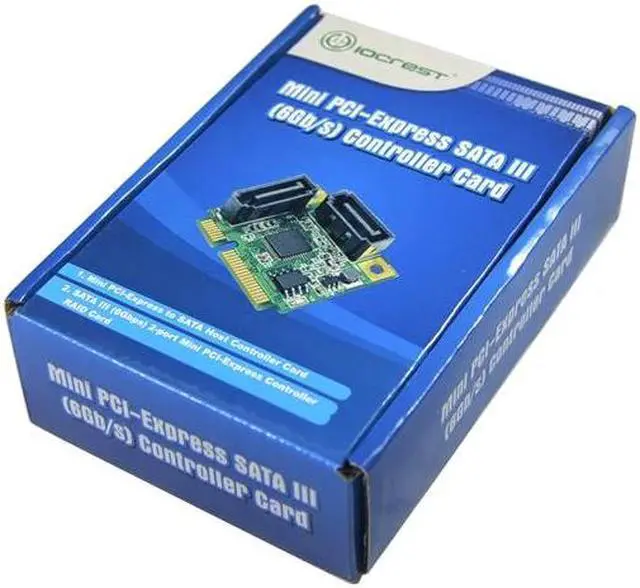

1 x Mini PCI-Express to SATA Host Controller Card (Included the small white Iron Bracket)
1 x User Manual
1 x Software Driver CD
1 x SATA Cable
Please check pictures for more details.
