R22SF PCIe 4.0 x4 to x4 Extension Cable PCI Express Gen4 Motherboard GPU Extender Conversion Riser Card Cable R22 Series(R22SF)(25CM)

Version PCIe 4.0 x4 to x4 Extension Cable PCI Express Gen4 Motherboard GPU Extender Conversion Riser Card Cable R22 Series
Product name: PCI-E 4.0 x4 to x4 transfer extension cable
Wire length: 3~100cm
Bandwidth speed: PCIe 4.0 x4
Applicable matching cards: support wireless network cards, wired network cards, capture cards, USB cards, solid-state hard disk cards, as long as the PCIe card is x4 and the motherboard slot is a device with x4 interface.
Friendly reminder: There are many compatibility problems with this product. Incorrect assembly or improper operation will burn your equipment. Only designated by professional engineers to purchase. This product is a customized product and cannot be returned or exchanged. Please consider and confirm clearly before placing an order.
Description of wire length:
The length of the wire in our shop refers to the part of the visible wire, excluding PCB and connectors.

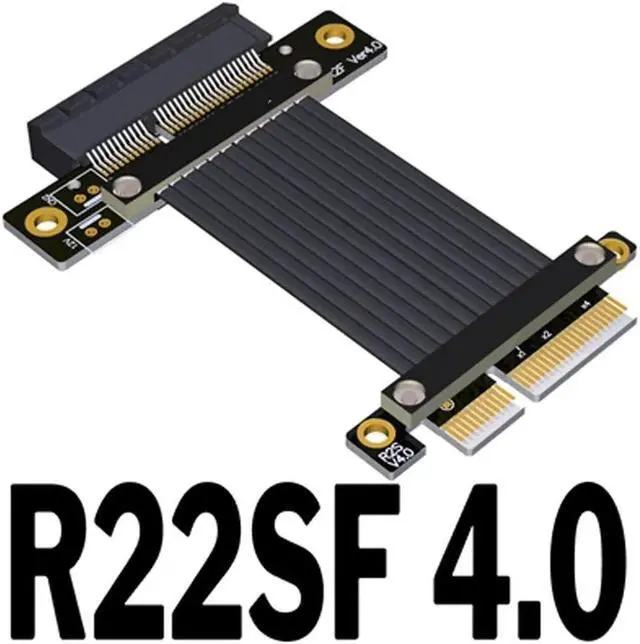

R22SF 4.0 180 Degree
R22SL 4.0 90 Degree-Female
R22SL-TL 4.0 Dual 90 Degree
R22SF-TL 4.0 90 Degree-Male
Product advantages:

1. Wire advantage, using high-quality connectors, high frequency support PCIe 4.0 x4 gen4 stable transmission.

2. Cord length advantage, from 3 cm to 1 meter can be customized. This adapter cable has low wire impedance, and the cable length within 60cm can stably support PCIe 4.0 full speed.

3. The differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable.

4. The PCB is made of high-quality materials with high frequency and low resistance. The PCB is made of high-quality materials. The PCB uses high-TG plates. The thickness of the copper material is thickened to 1oz. The gold finger has sufficient gold plating content and the gold-plated foot has good electrical conductivity, which can reduce oxidation and rust resistance caused by increased resistance. The crash of the sound problem.

5. The wire used in the product is very durable. Use PCB gaskets with a thickness of 3mm at the metal welding point, and lock the screws and hexagonal nuts to fasten the product. The product is strong and reliable, resistant to pulling, anti-interference, and will not break the wire. The nail drop problem.

6. The PCB is designed with short and fattening, which will not get stuck on the graphics card. The fattening and long design makes the board easier to install and reduces the chance of damage.
