High-speed PCI-E 4.0 x4 to x16 GPU Graphics Card Extension Cable PCIe 4.0 Stable Adapter Cable Extension 1U for RTX3090 RX6800xt(K23SL)(25cm)

PCI-E 4.0 x4 to x16 GPU Graphics Card Extension Cable PCIe 4.0 High-speed Stable Adapter Cable Extension 1U for RTX3090 RX6800xt
Product Name: PCI-E 4.0 x4 to x16 Graphics Card Extension Cable
Applicable graphics cards: RTX3090 RX6800xt, support for PCIE 4.0 graphics card
Speed bandwidth: PCIe 4.0 x4 gen4 64G/bps (Max. )
Use restrictions: PCIe 4.0 on the equipment requirements, as long as the extension cable connected to the signal will be attenuated, this commodity does not guarantee PCIE 4.0 full speed, equipment aging, poor signal or bad environment, please reduce the speed of use.
Purchasing tips: Be sure to buy 1~2 samples to test and verify that there is no error before purchasing large quantities.
Wire length and hole spacing instructions:
Length refers to the length of the wire, excluding the PCB and connectors.
Product model description:
modelexplain
R23SF 4.0PCI e 4.0 x4 to x16 Extension Cable Standard Edition 180-degree splint straight version
R23SL 4.0PCI e 4.0 x4 to x16 extension cable standard version 90 degree up bend right angle version
R23SH 4.0PCI e 4.0 x4 to x16 Extension Cable Standard Edition Universal model
R23SF-TL 4.0PCI e 4.0 x4 to x16 extension cable, 90 degree gold finger, 180 degree clamp, straight version
R23SL-TL 4.0PCI e 4.0 x4 to x16 extension line 90 degrees gold finger 90 degrees upward bend right angle
R23SH-TL 4.0PCI e 4.0 x4 to x16 extension cable 90 degree gold finger universal model
K23SFPC
Ie 4.0 x4 to x16 extension cable standard version 180 degree plywood straight version Fifth generation core wire

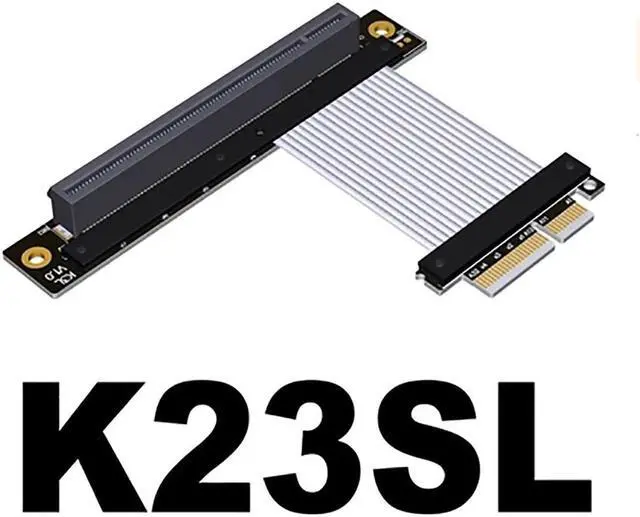

K23SLPC
Ie 4.0 x4 to x16 Extension Cable Standard Edition 90 degree Upbend Right Angle; Fifth generation core wire
K23SHPC
Ie 4.0 x4 to x16 Extension Line Standard Edition Universal   Five-generation core wire
Product Advantages.

1. Cable advantage, the fourth generation of high-speed cable with shielding, the use of high-quality connectors, high-frequency support for PCIe 4.0 x4 64G/bps stable transfer.

2. Advantage of wire length, from 5 cm to 1 meter can be accepted to order, adapter cable low impedance, 60cm or less wire length can be stable support for PCIe 4.0 full speed.

3. Differential signals without over-hole design, there is no parasitic capacitance and parasitic inductance of the signal attenuation interference problems, and will not have CAF micro-short phenomenon, product durability.
4. PCB selection of high-frequency, low resistance of high-quality materials, PCB precision workmanship, PCB using high TG plate, copper thickness thickened to 1oz, gold-plated gold finger content, gold-plated enough conductivity is good to reduce oxidation and rust impedance caused by elevated dead broken sound problem.

5. The product selection of the wire itself is very durable, the use of metal at the point of welding thickness of up to 3mm PCB spacer protection, and locking screws and hexagonal nuts fastened, the product is strong and reliable pulling, anti-interference, there will be no broken line off the nail problem.
6. PCB dwarfing and fat design, dwarfing will not be stuck to the graphics card, fat and long design to make the board easier to install, reduce the chance of damage.
