FYUU SX1276 Lora Breakout Board 868MHz With Antenna for Arduino, Raspberry Pi
- Top quality products: The quality of the products can be guaranteed to the greatest extent, because we have our own production warehouse. Products can be tested for quality before they leave the factory.
- High-quality distribution logistics: Our delivery warehouse is in the United States. The logistics method used is a local first-level logistics service provider in the United States. From the moment you place the order, it will be collected within 24 hours. You can receive your package within 3-5 working days.
- Timely after-sales service: Whether you have any questions about the logistics provider or product quality, you can contact me at any time. As long as the product is unused, you can return it to our warehouse in New Jersey. We serve you wholeheartedly 24 hours a day.
Overview
Specs
Reviews

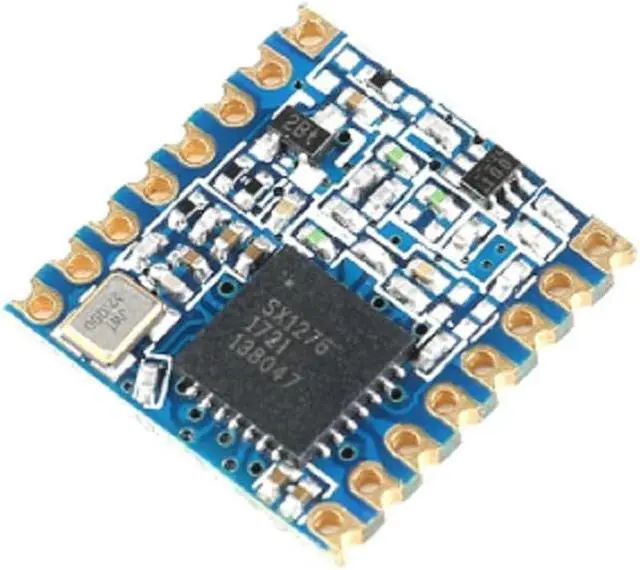

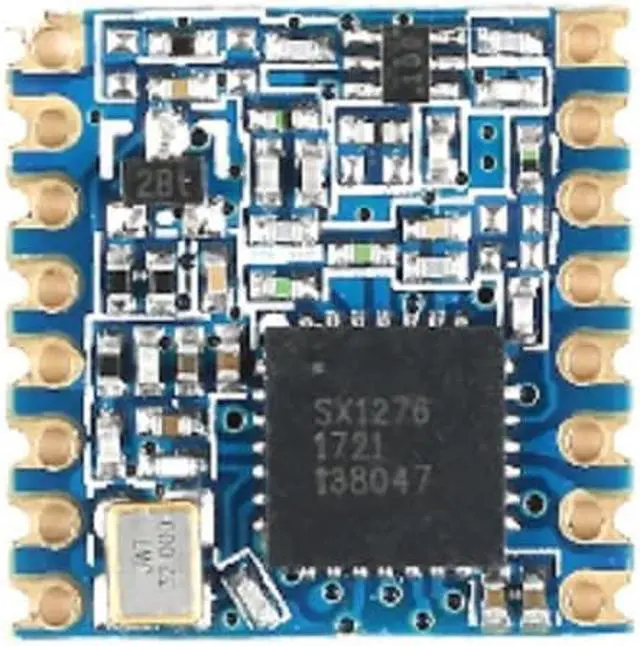

SX1276 Lora Breakout Board 868MHz With Antenna for Arduino, Raspberry Pi
Model: SX1276 868MHz
Type: Radio Module
Description:
·Connect your project to the Internet or your mobile devices even in remote regions using the long range transceiver based on the SX1276 chipset. The chip was preset to a frequency of 868MHz and is therefore suitable for use. The transceiver is suitable for the transmission of small data packets over long distances that are unsuitable for 2.4 GHz networks (BT, BLE, WLAN, ZigBee).
·The communication between the microcontroller and the radio module takes place via the SPI interface.
Features:
·Based on the SX1276 Lora module
·Easy control via SPI interface
·Low power consumption of around 12 mA when receiving
·Operating voltage: 3.3V

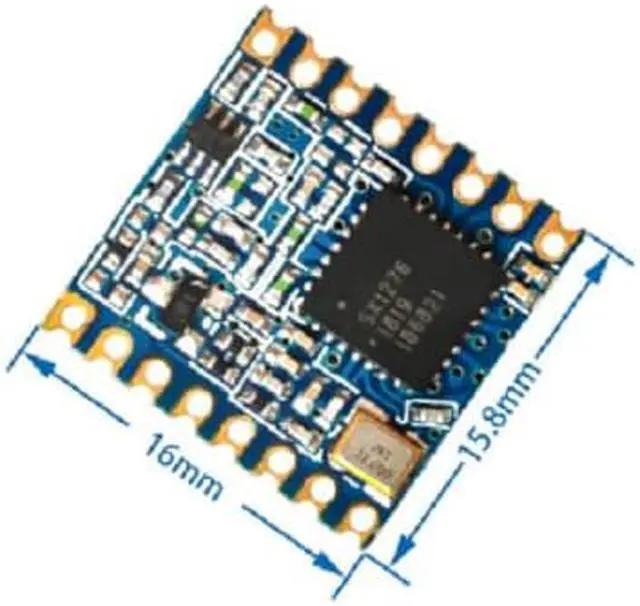

·Size:16.5 x 17mm

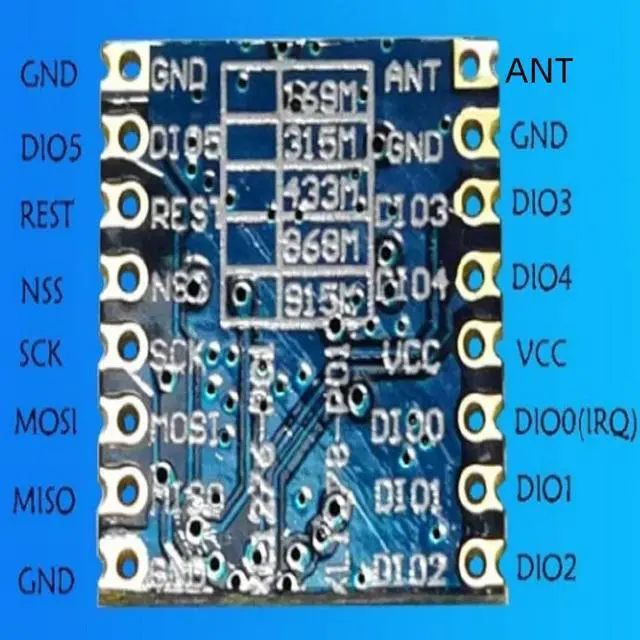

·Interface Spacing:1.27mm
There might be little error of size for manual measurement.
Package Including:

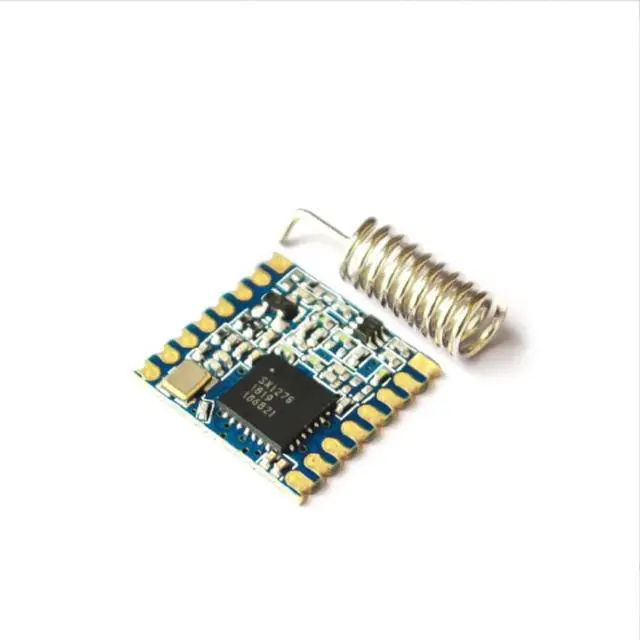

1 x SX1276 Lora Breakout Board With Antenna
Model: SX1276 868MHz
Type: Radio Module
Description:
·Connect your project to the Internet or your mobile devices even in remote regions using the long range transceiver based on the SX1276 chipset. The chip was preset to a frequency of 868MHz and is therefore suitable for use. The transceiver is suitable for the transmission of small data packets over long distances that are unsuitable for 2.4 GHz networks (BT, BLE, WLAN, ZigBee).
·The communication between the microcontroller and the radio module takes place via the SPI interface.
Features:
·Based on the SX1276 Lora module
·Easy control via SPI interface
·Low power consumption of around 12 mA when receiving
·Operating voltage: 3.3V
·Size:16.5 x 17mm
·Interface Spacing:1.27mm
There might be little error of size for manual measurement.
Package Including:
1 x SX1276 Lora Breakout Board With Antenna
