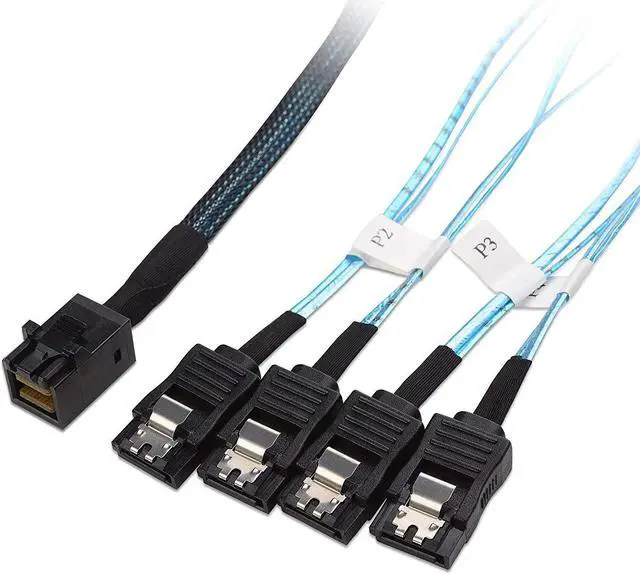

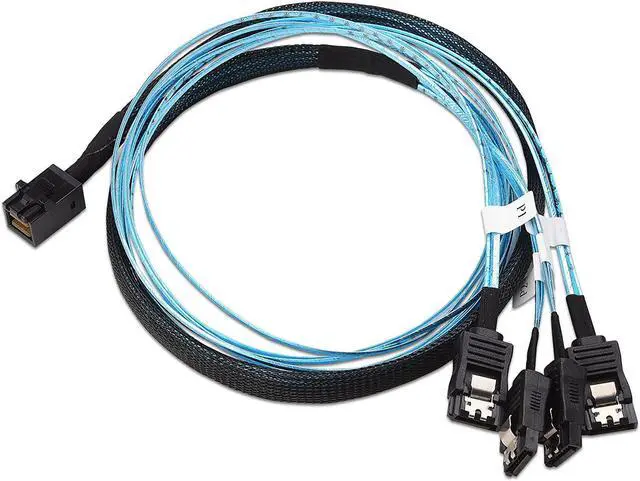

Cable Matters Internal Mini SAS HD to SATA Cable (SFF-8643 to SATA Forward Breakout) 3.3 Feet, 1m

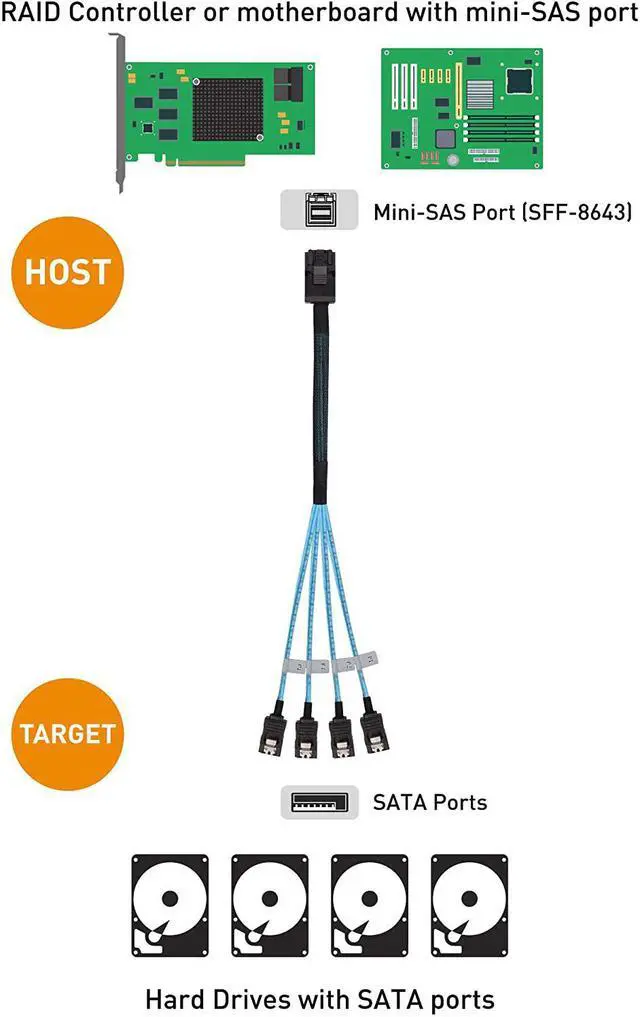

- Internal HD Mini SAS cable is specifically designed to connect a 12 Gbps host bus adapter or RAID controller with SFF-8643 to 4 discrete SATA drives; Mini SAS HD to SATA adapter cable provides reliable internal connectivity between a high density RAID controller card and direct attached storage devices with a SATA plug
- Hybrid high density SAS to SATA with a 36 pin SFF 8643 connector and 4 x 7 pin SATA connectors provides both 3 Gbps and 6 Gbps compatibility while migrating to a to 12 Gbps storage area network system

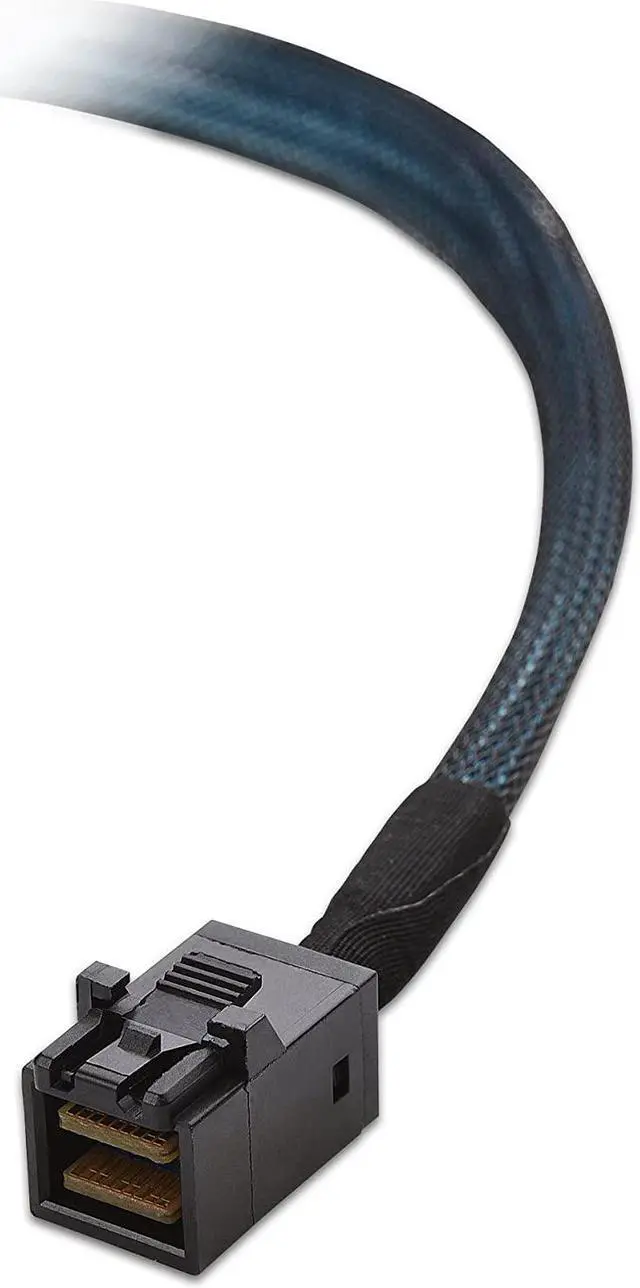

- Forward fan-out cable has an internal SFF-8643 (HOST) HD Mini-SAS 36 pin connector and 4 x SATA 7 pin (TARGET) drive connectors; Four discrete SATA fanout drive cables are of equal length with stainless steel latches to provide a secure connection
- Multi-lane 8643 to SATA CABLE with 4 channels can drive 4 SATA drives; Supports multiple lanes of high speed SATA traffic over a single cable; SFF 8643 compatible with the Adaptec RAID 71605 / 7895 Storage Controllers
Overview
Specs
Reviews
Product Description High Density Storage Migration Solution The Cable Matters Internal HD Mini-SAS 8643 to 4 x SATA Cable is an essential component for migrating from a 6 Gbps to 12 Gbps storage area network
It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.Robust ConstructionThe combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case.Important NotesPair with a 4 port SATA to Power Splitter Cable to provide power to the drivesData transfer speed is determined by the capabilities of your SAS controller and SATA drives SFF-8643 HD Mini-SAS 36 pin connector 1 x 36 pin HD Mini-SAS SFF-8643 - male with latchConnect a 12Gbps host bus adapter or RAID controller with SFF-8643 4 x 7 pin SATA connectors 4 x 7 pin SATA receptacle female with latchCompatible with 2.5", 3.5" SATA I, II, III hard drives Built to run 24/7 Acetate cloth tape over slim ribbonBraided sleeve jacketP1 to P4 markersStainless steel latchesEasy-grip treadsRead moreMini SAS HD to SATA Forward Breakout CableInternal 12G U.2 Cable with SATA PowerConnectorsMini SAS HD to SATAMini SAS HD to U.2 with SATA PowerAvailable Lengths3.3 Feet2 FeetModel Numbers104031104046
It provides multiple lanes of high speed SATA traffic through a single cable in a sturdy but flexible cable that is built to withstand 24/7 use.Robust ConstructionThe combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case.Important NotesPair with a 4 port SATA to Power Splitter Cable to provide power to the drivesData transfer speed is determined by the capabilities of your SAS controller and SATA drives SFF-8643 HD Mini-SAS 36 pin connector 1 x 36 pin HD Mini-SAS SFF-8643 - male with latchConnect a 12Gbps host bus adapter or RAID controller with SFF-8643 4 x 7 pin SATA connectors 4 x 7 pin SATA receptacle female with latchCompatible with 2.5", 3.5" SATA I, II, III hard drives Built to run 24/7 Acetate cloth tape over slim ribbonBraided sleeve jacketP1 to P4 markersStainless steel latchesEasy-grip treadsRead moreMini SAS HD to SATA Forward Breakout CableInternal 12G U.2 Cable with SATA PowerConnectorsMini SAS HD to SATAMini SAS HD to U.2 with SATA PowerAvailable Lengths3.3 Feet2 FeetModel Numbers104031104046
