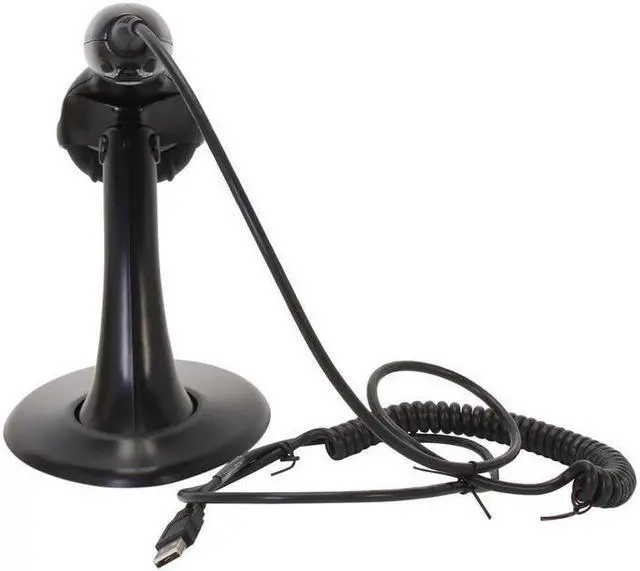

Honeywell MS9540 VoyagerCG Barcode Scanner, Black, USB Kit - MK9540-32A38
- Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand.
- 650-nanometer Laser: High-visibility laser allows user to place laser line on selected bar code.
- Flash ROM: Future proof POS system with free firm ware updates via Metro Set®2 software and standard PC.
- Parsing (Data Editing): Format bar code data to meet host system's specific requirements.
- Code Gate Technology (Voyager CG 9540 only): Zero in on desired code and complete data transmission with the push of a single button ideal for menu scanning applications.
Overview
Specs
Reviews
Please note that the price does not include customs duties!! Customs duties need to be borne by the buyer themselves.
Mechanical:
Dimensions (LxWxH): 198 mm x 78 mm x 56 mm ( 7.8" x 3.1" x 2.2 )
Weight: 149 g ( 5.3 oz)
Electrical:
Input Voltage: 5 VDC + 0.25 V
Operating Power: 825 mW(165 mA @ 5 V)
Standby Power: 600 mW (120 mA @ 5 V)
Host System interfaces: USB, RS232, Keyboard Wedge, IBM 46x (RS485), (Emulation.. Light Pen Wand Emulation
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.5 m (5) drops
Environmental Sealing: Sealed to resist airborne particulate contaminants
Light Levels: 4842 LUx
Scan Performance:
Scan Pattern: Single scan line:
Scan Speed: 72 scan lines per second
Scan Angle: Horizontal: 50°
Print Contrast: 35% minimum reflectance difference
Pitch,
Skew: 68°, 52°
Decode Capabilities: Reads standard 1D and GS1 DataBar symbologies
Mechanical:
Dimensions (LxWxH): 198 mm x 78 mm x 56 mm ( 7.8" x 3.1" x 2.2 )
Weight: 149 g ( 5.3 oz)
Electrical:
Input Voltage: 5 VDC + 0.25 V
Operating Power: 825 mW(165 mA @ 5 V)
Standby Power: 600 mW (120 mA @ 5 V)
Host System interfaces: USB, RS232, Keyboard Wedge, IBM 46x (RS485), (Emulation.. Light Pen Wand Emulation
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.5 m (5) drops
Environmental Sealing: Sealed to resist airborne particulate contaminants
Light Levels: 4842 LUx
Scan Performance:
Scan Pattern: Single scan line:
Scan Speed: 72 scan lines per second
Scan Angle: Horizontal: 50°
Print Contrast: 35% minimum reflectance difference
Pitch,
Skew: 68°, 52°
Decode Capabilities: Reads standard 1D and GS1 DataBar symbologies
