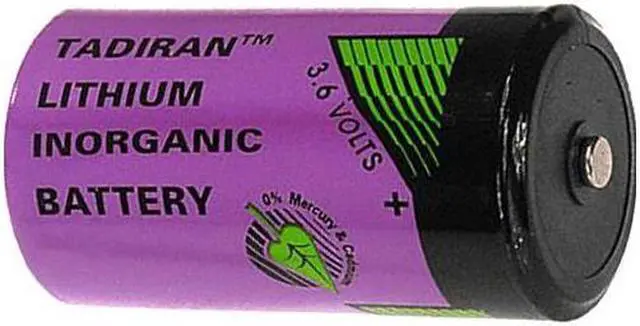

Tadiran TL-5920/S 3.6V C 8.5 Ah Lithium Battery (ER26500 / LS26500)

Specifications:
Voltage: 3.6V
Capacity: 8.5
Ah Size: C
Chemistry: Lithium Thionyl Chloride (Li-SOCI2)
Brand: Tadiran
Termination Style: Button
Top Shelf Life: 10+
Years Maximum Recomended Continuous Current: 230 mA Maximum Pulse
Current Capability: 400 mA
Diameter (max): 26 mm ( 1.03 in)
Height (max): 50 mm ( 1.97 in)
Typical weight: 49.5 g ( 1.75 oz)
Included Qty: 1
Key Features: High operating voltage, stable during most of the application lifetime Some of the highest nominal capacities on the market today Excellent reliability over extended operating life
Operating Temperature Range: -60°C/+85°C (-76°F/+185°F) Low self-discharge rate (less than 1% after 1 year of storage at + 20°C) Excellent resistance to humid environments Low magnetic signature Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte Less than 1% capacity loss during storage at ambient temperature before use
Compatible With: ER26500 LS26500 LS26500C TL-4920 TL-2200 SB-C01 SB-C02 SL-770 XL-140F XL-145F PT-2200 Warning: This battery is not rechargeable. Do not try to recharge. The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated Don't use different models of battery in series. Soldering the tab should be finished in few seconds. Do not use if the battery casing was mangled
