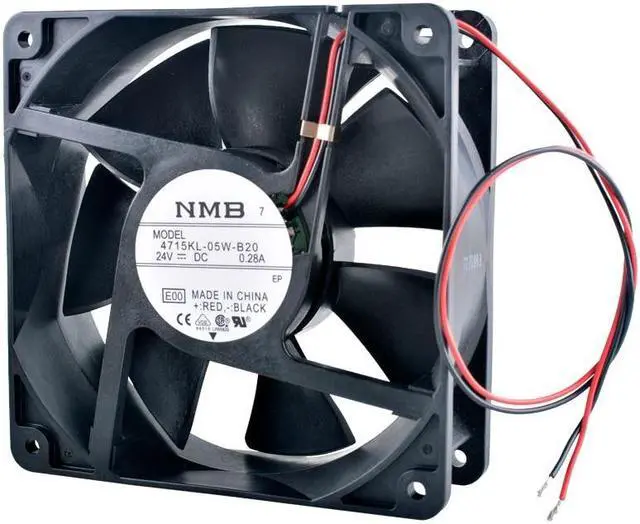

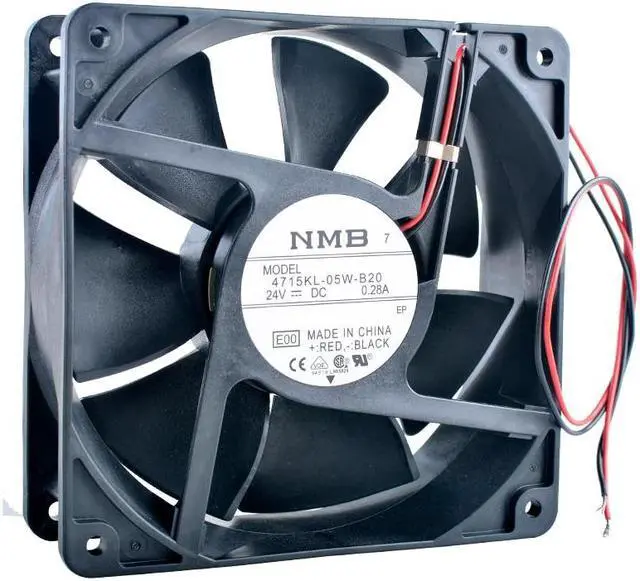

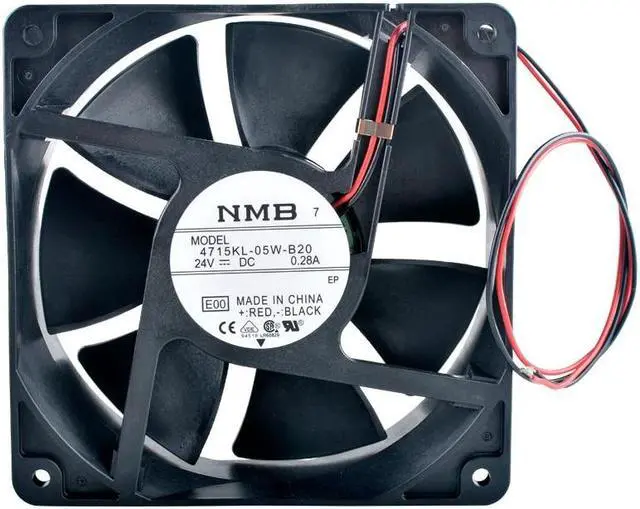

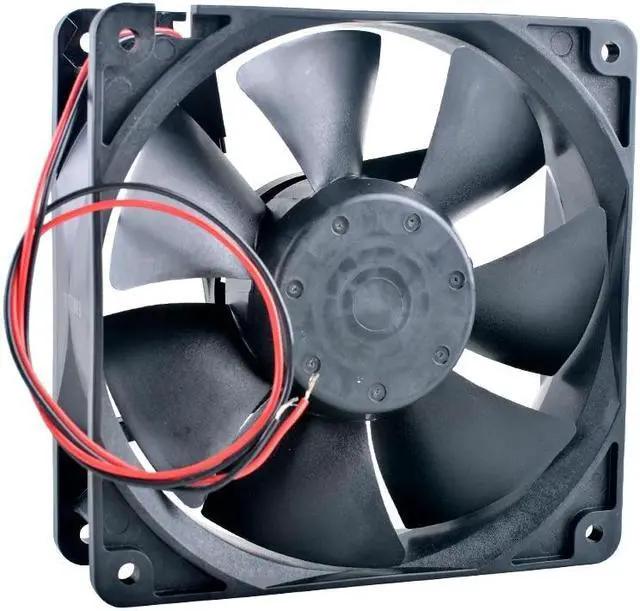

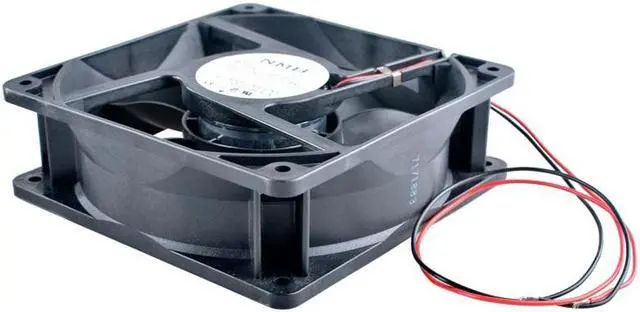

4715KL-05W-B20 12cm 120mm fan 120x120x38mm DC24V 0.28A Dual ball bearing cooler cooling fans for frequency converter
- 4715KL-05W-B20 12cm 120mm fan 120x120x38mm DC24V 0.28A Dual ball bearing cooler cooling fans for frequency converter
Overview
Specs
Reviews
Category
DC Axial Fans
Part Number
4715KL-05W-B20-E00
Frame Width [mm]
119
Frame Height [mm]
119
Frame Depth [mm]
38
Max. Air Flow [CFM]
97
Max. Air Flow [m3 per min]
2.75
Max. Static Pressure [In H2O]
0.22
Max. Static Pressure [Pa]
55.9
Fan Speed [RPM]
2650
Noise [dB]
41
Life Expectancy [L10]
25 degree C 50, 000 Hours
Bearing Type
Ball Bearing
Nominal Voltage [V]
24
Operating Voltage - Lower [V]
10
Operating Voltage - Upper [V]
27.6
Current [A]
0.21
Input Power [W]
5
Mass [g]
260
Rib/Flange
Flange
Tach / Locked Rotor Output
Standard 2 Wire
DC Axial Fans
Part Number
4715KL-05W-B20-E00
Frame Width [mm]
119
Frame Height [mm]
119
Frame Depth [mm]
38
Max. Air Flow [CFM]
97
Max. Air Flow [m3 per min]
2.75
Max. Static Pressure [In H2O]
0.22
Max. Static Pressure [Pa]
55.9
Fan Speed [RPM]
2650
Noise [dB]
41
Life Expectancy [L10]
25 degree C 50, 000 Hours
Bearing Type
Ball Bearing
Nominal Voltage [V]
24
Operating Voltage - Lower [V]
10
Operating Voltage - Upper [V]
27.6
Current [A]
0.21
Input Power [W]
5
Mass [g]
260
Rib/Flange
Flange
Tach / Locked Rotor Output
Standard 2 Wire
