Car Motorcycle Door 12V LED Fingerprint Control Board w/ Module
- Top quality products: The quality of the products can be guaranteed to the greatest extent, because we have our own production warehouse. Products can be tested for quality before they leave the factory.
- High-quality distribution logistics: Our delivery warehouse is in the United States. The logistics method used is a local first-level logistics service provider in the United States. From the moment you place the order, it will be collected within 24 hours. You can receive your package within 3-5 working days.
- Timely after-sales service: Whether you have any questions about the logistics provider or product quality, you can contact me at any time. As long as the product is unused, you can return it to our warehouse in New Jersey. We serve you wholeheartedly 24 hours a day.
Overview
Specs
Reviews
Technical parameter
Power supplyDC10V--30V
Standby current40mA
Fingerprint capacity200 pieces
Instructions for K215-V1.2 control board
1. Press Set button shortly, system in register state and indicator light flash fast, press two times for each fingerprint, fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting 8 seconds.
2. When back to factory default, press SET button until hear Di long beep and music, this means initialization operation successful.
3. Function SetWhen terminal 2, operating time of the relay is 1s after pass fingerprint. When terminal 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.
You can dowload K215-V1.2 user manual from the following website:
https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0
You can download the R503 user manual from this website link:
https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0
K215-V1.2 fingerprint control board connect with R501,R502,R502-A,R503 video on Youtube:https://youtu.be/1Zk2bjRdRpg
K215-V1.2+R503 relay mode operation video on Youtube:https://youtu.be/TjTcx-9hIT0
K215-V1.2+R503 register fingerprint video on Youtube: https://youtu.be/_kFsBPBsgU4

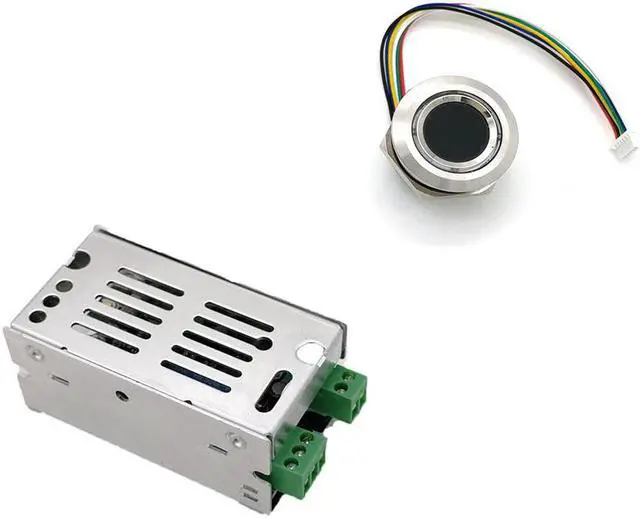

For shipping list, please see the following photo:
K215-V1.2 Fingerprint Control Board+R503 Fingerprint module+Nut
Power supplyDC10V--30V
Standby current40mA
Fingerprint capacity200 pieces
Instructions for K215-V1.2 control board
1. Press Set button shortly, system in register state and indicator light flash fast, press two times for each fingerprint, fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting 8 seconds.
2. When back to factory default, press SET button until hear Di long beep and music, this means initialization operation successful.
3. Function SetWhen terminal 2, operating time of the relay is 1s after pass fingerprint. When terminal 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.
You can dowload K215-V1.2 user manual from the following website:
https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0
You can download the R503 user manual from this website link:
https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0
K215-V1.2 fingerprint control board connect with R501,R502,R502-A,R503 video on Youtube:https://youtu.be/1Zk2bjRdRpg
K215-V1.2+R503 relay mode operation video on Youtube:https://youtu.be/TjTcx-9hIT0
K215-V1.2+R503 register fingerprint video on Youtube: https://youtu.be/_kFsBPBsgU4
For shipping list, please see the following photo:
K215-V1.2 Fingerprint Control Board+R503 Fingerprint module+Nut
