InfiRay Phone Infrared Thermal Imager PCB Circuit Industrial Test Floor Heating Pipe Temperature for iPhone 15 series

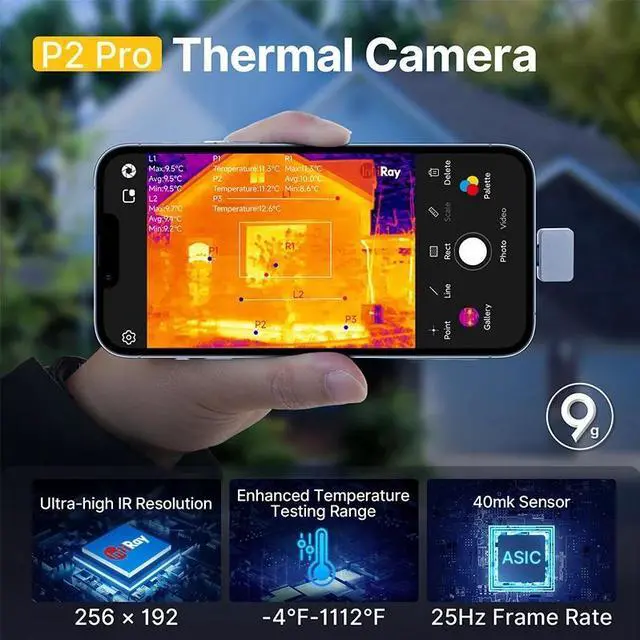

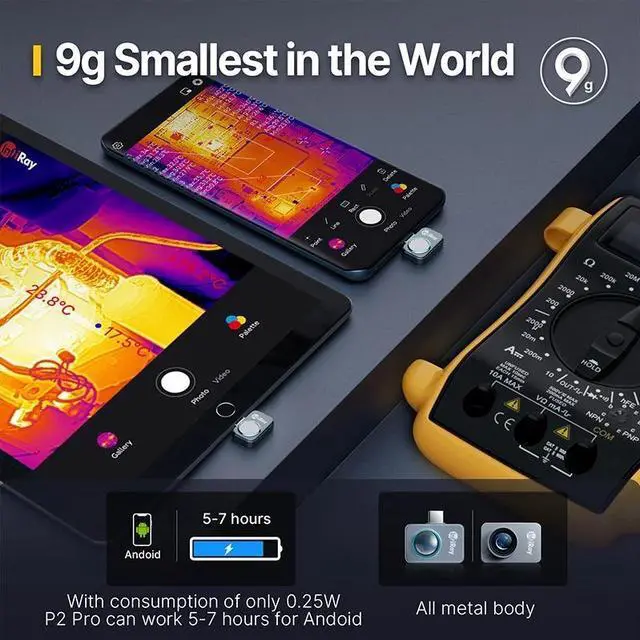

- Human Infrared Technology Limit: With 9g metal body and 9mm thickness, P2 Pro is the worlds smallest thermal imager. One seventh of the volume, 10 times ability to enhance. P2 Pro with a 256x192 InfiRay high infrared resolution and 40mk high sensitivity
- -4 to 1112 Extensive Temperature Range: -20 to 600 wide temperature reading range and a PCB accuracy within ±2°C. Whether you are an engineer, contractor or home owner, P2 Pro allows you to easily detect thermal-related hazards and dangers

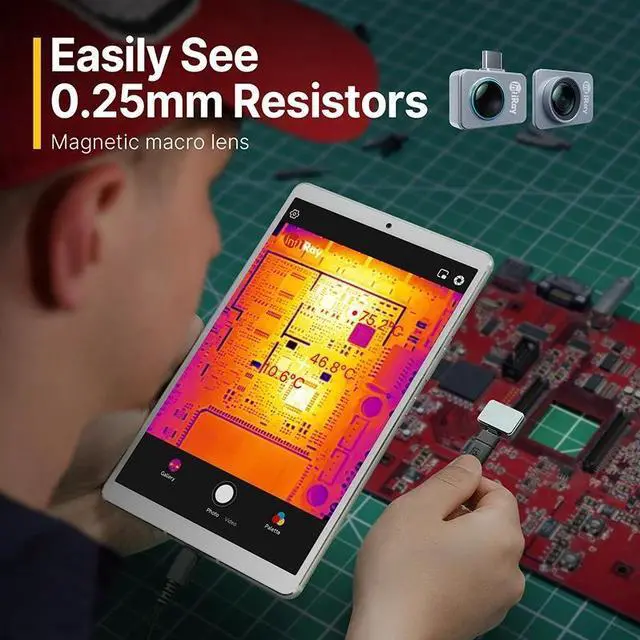

- Observe 0.25mm Resistor: The magnetic macro lens enables you to switch usage scenes as you please. You can even see distant and nearby objects clearly, with the 0.25mm resistor clearly visible at 4cm away.
- Free Professional Data Analysis: P2 Pro allows you to select point, line, and area to analyze images in your phone album. There is no need to take a photo of the temperature measurement object. Additionally, P2 Pro supports video recording, image rotation
Overview
Specs
Reviews
Please note that this is the iPhone 15 series version!
Please confirm the model you have selected before placing an order. If you need an Android or iOS series, please click on our store to search and purchase.
Model: P2 Pro with magnetic macro lens
Resolution: 256×192
NETD: 50mK@25°C, F# 1.0
Performance:
Frame Rate: 25Hz
Operating Temperature: -10°C~55°C
Storage Temperature: -40°C~85°C
Power Consumption: 350mW
Processor: Self-developed ASIC chip
Lens:
Focal length: 3.2 mm
Aperture: F 1.1
FOV: 56.0 °x 42.2 °
Focusing Mode: Athermalized Prime Lens
Macro Lens: Adaptable
Temperature Measurement:
Measurement Range: -20°C~ 600°C
Measuring Error: ±2ºC (±2% of reading, the greater shall prevail)
Temperature Correction: Emissivity, distance, environmental temperature
Shell:
Size: 27x18x 9.8 (mm)
Color: Silver
Weight: 9g
Interface: USB type C
Software Function:

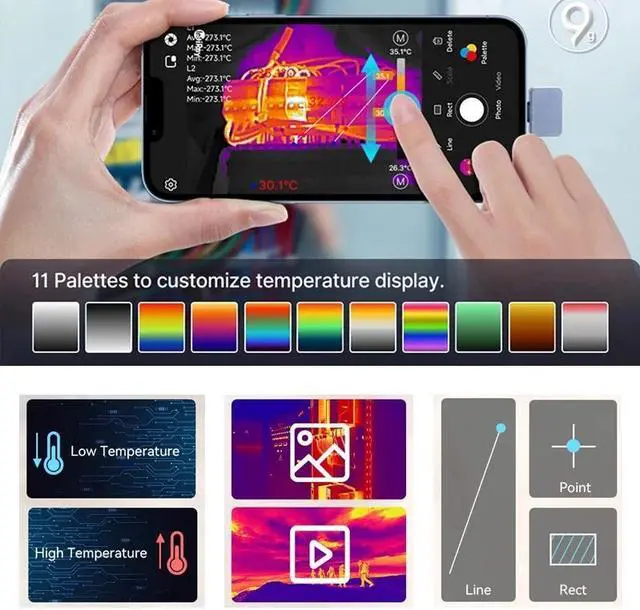

Palette: White/black-hot + 6 palettes
Measurement Mode: Point/line/plane temperature measurement
Information Sharing: Instant picture sharing
Data analysis: Secondary temperature analysis and processing of images
Imaging Tool: iOS
Software Update: Online update
Please confirm the model you have selected before placing an order. If you need an Android or iOS series, please click on our store to search and purchase.
Specifications
:Model: P2 Pro with magnetic macro lens
Resolution: 256×192
NETD: 50mK@25°C, F# 1.0
Performance:
Frame Rate: 25Hz
Operating Temperature: -10°C~55°C
Storage Temperature: -40°C~85°C
Power Consumption: 350mW
Processor: Self-developed ASIC chip
Lens:
Focal length: 3.2 mm
Aperture: F 1.1
FOV: 56.0 °x 42.2 °
Focusing Mode: Athermalized Prime Lens
Macro Lens: Adaptable
Temperature Measurement:
Measurement Range: -20°C~ 600°C
Measuring Error: ±2ºC (±2% of reading, the greater shall prevail)
Temperature Correction: Emissivity, distance, environmental temperature
Shell:
Size: 27x18x 9.8 (mm)
Color: Silver
Weight: 9g
Interface: USB type C
Software Function:
Palette: White/black-hot + 6 palettes
Measurement Mode: Point/line/plane temperature measurement
Information Sharing: Instant picture sharing
Data analysis: Secondary temperature analysis and processing of images
Imaging Tool: iOS
Software Update: Online update
