InfiRay Thermal Imager PCB Circuit Industrial Test Floor Heating Pipe Xinfrared Infrared Temperature for Android

Please note that this is the Android version! Please note that this is the Android version! Please note that this is the Android version!

Specifications

:

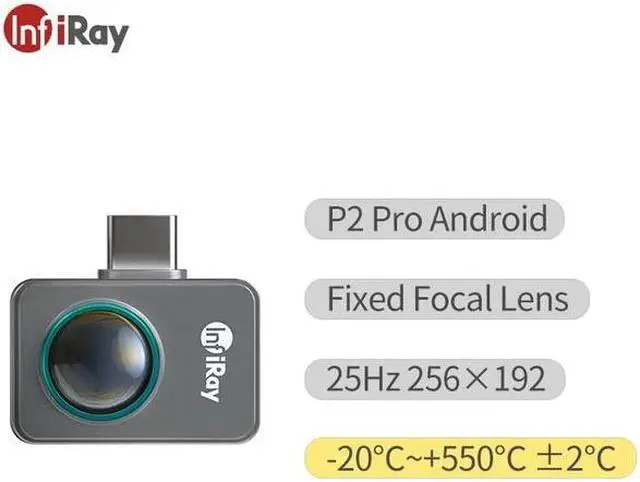

Model: P2 Pro
Resolution: 256×192
NETD: 50mK@25°C, F# 1.0

Performance:
Frame Rate: 25Hz
Operating Temperature: -10°C~55°C
Storage Temperature: -40°C~85°C
Power Consumption: 350mW
Processor: Self-developed ASIC chip

Lens:
Focal length: 3.2 mm
Aperture: F 1.1
FOV: 56.0 °x 42.2 °
Focusing Mode: Athermalized Prime Lens

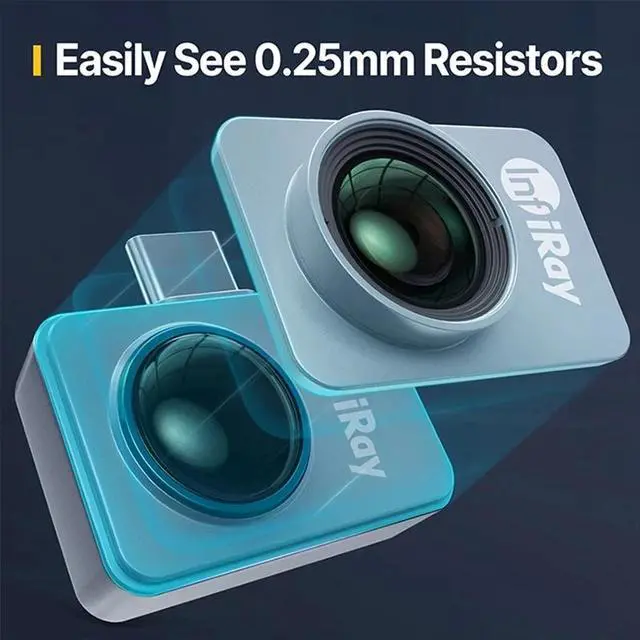

Macro Lens: Adaptable

Temperature Measurement:
Measurement Range: -20°C~ 600°C
Measuring Error: ±2ºC (±2% of reading, the greater shall prevail)
Temperature Correction: Emissivity, distance, environmental temperature

Shell:
Size: 27x18x 9.8 (mm)
Color: Silver
Weight: 9g
Interface: USB type C

Software Function:
Palette: White/black-hot + 6 palettes
Measurement Mode: Point/line/plane temperature measurement
Information Sharing: Instant picture sharing
Data analysis: Secondary temperature analysis and processing of images
Imaging Tool: Android 6.0 and above
Software Update: Online update
