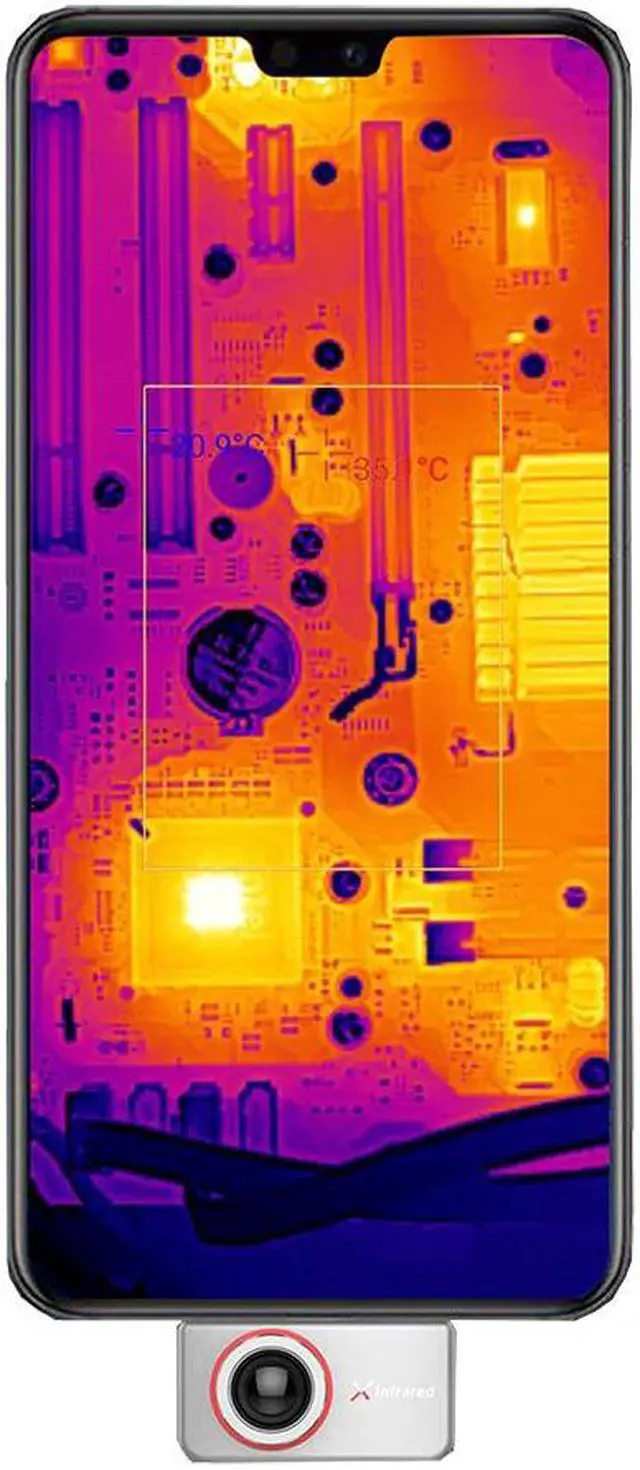

InfiRay T3S Thermal Camera Mini Thermal Scope for Android Industrial PCB Floor Heat Detection Thermal Imager

Please note that this is the Android version!
This is the Android version! This is the Android version!


Main technical parameters:

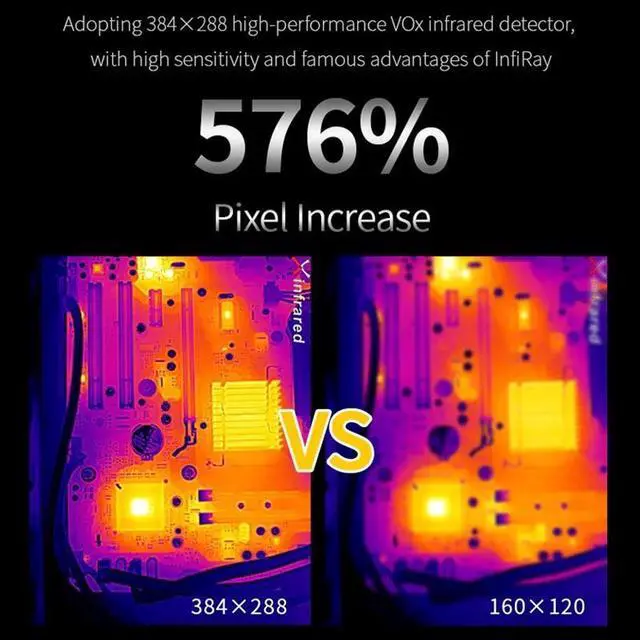

Resolution: 384x288
Pixel Size: 17m
Spectral Band: 8~14m
Lens: 13mm
Focusing Mode: Manual
Image Frame Rate: 25Hz
NETD: 50mk
MRTD: 500mK
Operating Temperature: -20~+ 50
Measuring Range: -20~+120
Accuracy: ±3
Temperature Correction: Manual/Automatic
Power Consumption: < 500mW
Weight (with lens): <40g
Dimension (with lens): 49.5 mmx26mmx 27.5 mm
Shell: Alloy body

Image Enhancement: Digital detail enhancement (DDE)
Image Correction: Manual

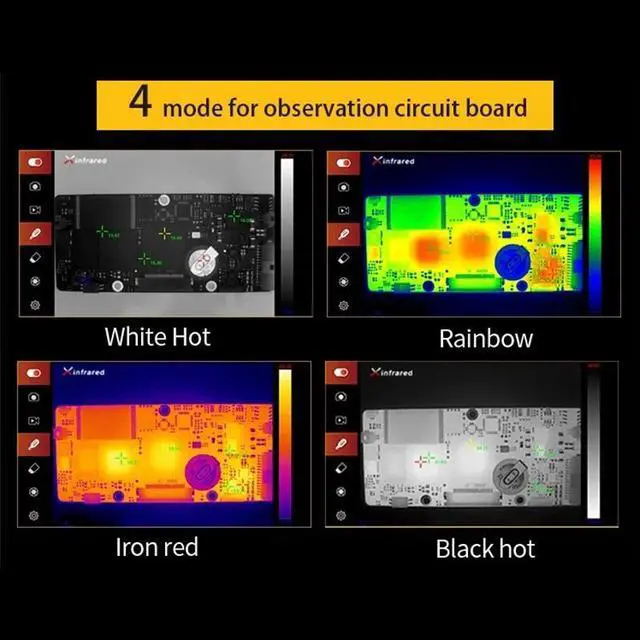

Palette: White-hot/black-hot/iron-red/rainbow/high contrast rainbow/iron-grey
Secondary Development: Provide SDK
Temperature Statistics: Support high /low/central point temperature display, and point/line/area analysis, statistics
Video Saving: Support the functions of photographing and video saving
Software Update: Support online software update

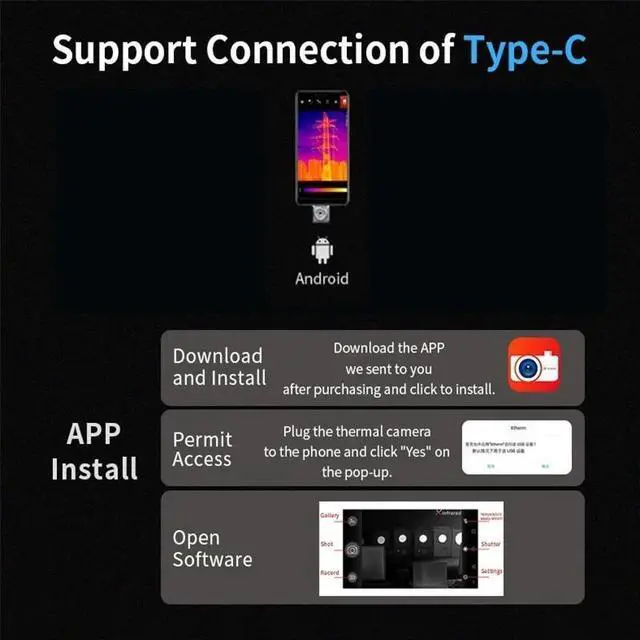

Supported System: Android 6.0 and Above
