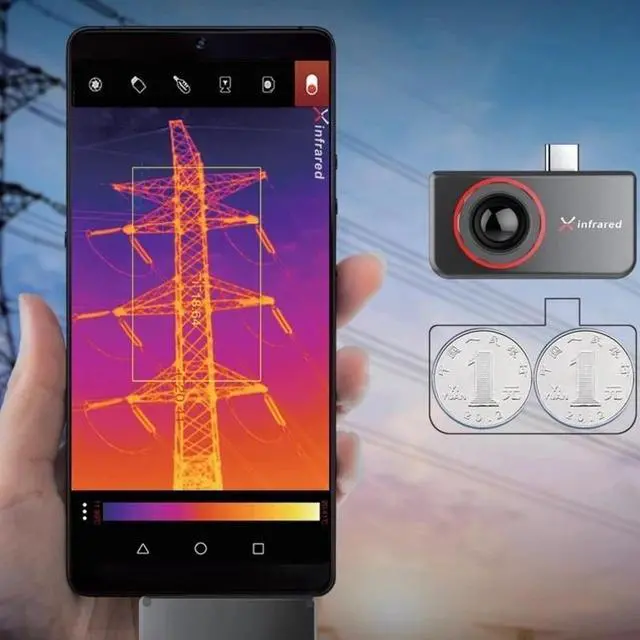

InfiRay T3 Pro Mini Thermal Scope Infrared Camera Thermal Imager for Android Mobile Phone Type C 25Hz 384x288 Pixel Thermographic

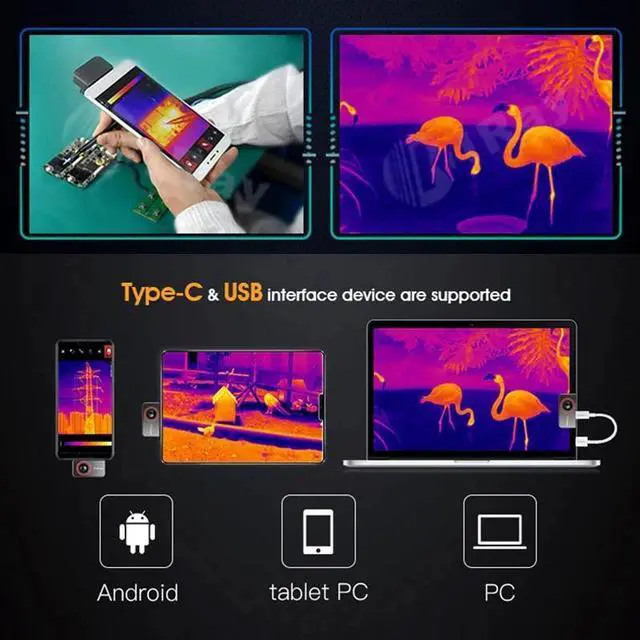

Purchase Notice: Only supports Android system, Type-C mobile interface.

Specifications

:
1.

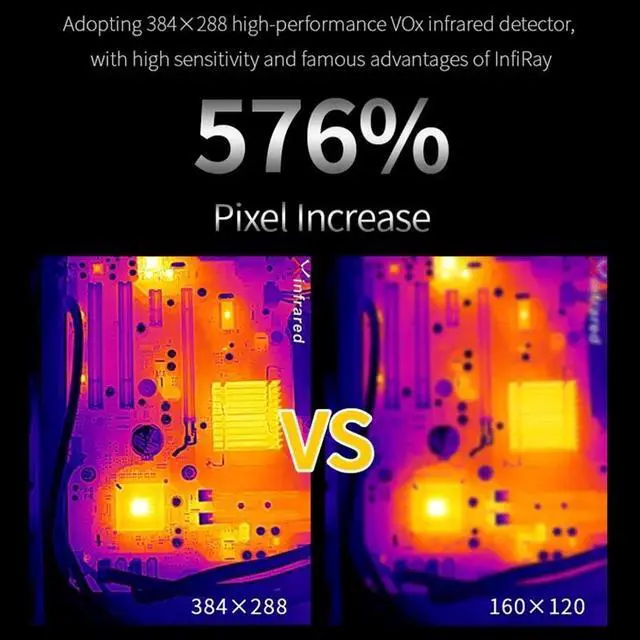

Resolution: 384x288
2.
Pixel Size: 17m
3.
Spectral Band: 8~14m
4.
Lens: 13mm
5.
Focusing Mode: Manual
6.
Image Frame Rate: 25Hz
7.
NETD: 50mk
8.
MRTD: 500mK
9.
Operating Temperature: -20~+ 50
10.
Measuring Range: -20~+400
11.
Accuracy: ±2°C or ±2% of reading, the greater shall prevail
12.
Temperature Correction: Manual/Automatic
13.
Power Consumption: < 500mW
14.
Weight (with lens): <40g
15.
Dimension (with lens): 49.5 mmx26mmx 27.5 mm
16.
Shell: Alloy body
17.
Image Enhancement: Digital detail enhancement (DDE)
18.
Image Correction: Manual
19.
Palette: White-hot/black-hot/iron-red/rainbow/high contrast rainbow/iron-grey
20.
Secondary Development: Provide SDK
21.
Temperature Statistics: Support high /low/central point temperature display, and point/line/area analysis, statistics, and report.
22.
Video Saving: Support the functions of photographing and video saving
23.
Software Update: Support online software update
