Intel Japser Lake Processor based Mini PC with Dual Displays
| CPU |
N5095 |
| Cores/Threads |
4/4 |
| Burst Frequency |
2.90GHz |
| Base Frequency |
2.00GHz |
| Cache |
4MB L3 Cache |
| BIOS |
AMI UEFI BIOS |
| Memory Type |
Dual Channel SO-DIMM DDR4 |
| Max Capacity |
32GB |
| GPU |
Integrated Intel UHD Graphics |
| Display Port |
2x HDMI 2.0 |
| Ethernet Speed |
10/100/1000 Mbps |
| Controller |
RTL8111H |
| Interface |
RJ-45 |
| Audio Codec |
Realtek HD |
| Storage |
M.2 1xM.2 for NVMe/SATA SSD |
| Expansion M.2 |
1xM.2 for WiFi and Bluetooth |
| I/O Interface |
2xUSB3.2, 2xUSB2.0, 1xLAN, 2xHDMI, USB-C, Line-out, Mic-in |
| Dimension Size |

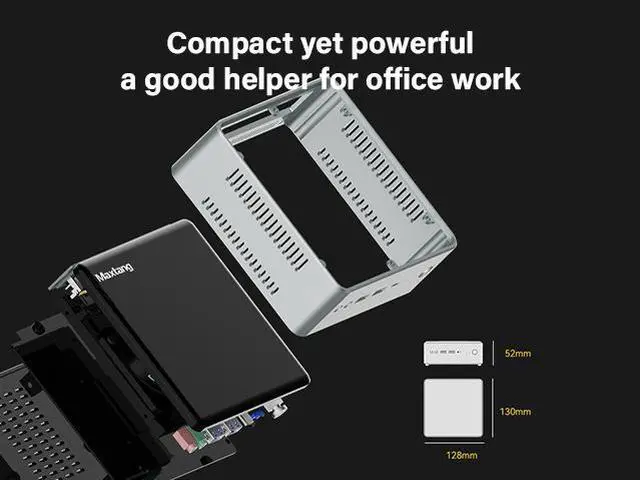

128 mm x 130 mm x 52mm (L x W x H) |
| Power Standard Port |
12V DC-in |
| Operating Temp. |
0°C to 50°C |
| Storage Temp. |
-20°C to 70°C |
| Cooling |
Active |
| Operating System |
Win10 64bit, Linux 64bit |

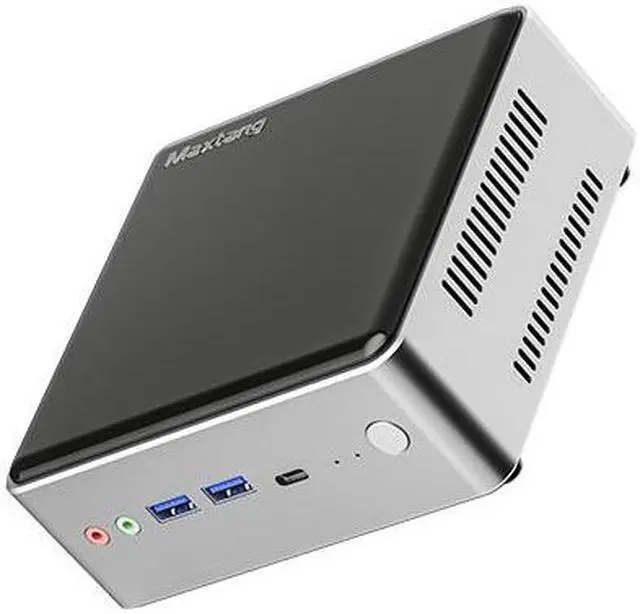

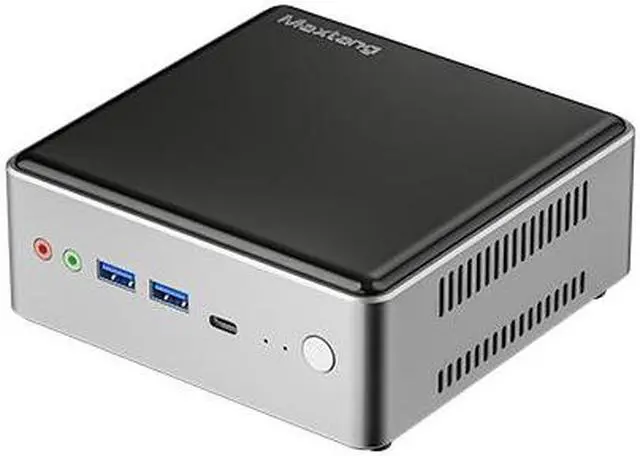

The Maxtangs MTN-JSL50 mini-PC incorporates the Intel Jasper Lake N5095 processor offers you greater computing power with cost advantages. It supports dual-channel SO-DIMM DDR4 up to 32GB and dual independent displays via 2xHDMI 2.0. Features 1xM. 2 SATA/NVMe for storage. A comprehensive connectivity option 2x USB 3.2, 2xUSB 2.0, 1xLAN, 1x USB-C, Mic-in, and Line-out with standard 12V/19V DC-in. It is covered with an aluminum enclosure and is desktop ready easy to install.
The MTN-JSL50 enables bare-bones, RAM, and storage customization options to suit your needs. Its
small form factors, ultra-compact, lightweight, and space-saving features are perfect for various applications. It provides a smooth, reliable performance with a dimension of 128mm x 130mm x 52mm, suitable for kiosks, PoS, retail, home, or ofce use. Builds with advanced cooling construction, the smart fan design overcomes overheating challenges and decreases the rate of system failure, which means less maintenance and longer-lasting durability.
